Headroom Electric Hoist

Lifting capacity: 0.5-20T

Working class: M7

Cross speed: 5-20m/min(frequency conversion control)

Lifting speed: Double speed

Feature: Light dead weight, structure compact, energy-conservation, environmental protection, maintenance free

Working temperature: -10°C~40°C

based on advanced technology and modular design theory, headroom electric hoist is optimized by modern computer technology and reliable methods, greatly reducing the distance from hook to running rail. Design, production and inspection's standard equivalents to FEW, DIN,IEC.

Send Email

Chat Now

Share With:

Product description

Based on advanced technology and modular design theory, headroom electric hoist is optimized by modern computer technology and reliable methods, greatly reducing the distance from hook to running rail. Design, production and inspection's standard equivalents to FEW, DIN, IEC.

Lifting capacity: 0.5-20T

Working class: M7

Cross speed: 5-20m/min (frequency conversion control)

Lifting speed: Double speed

Feature: Light dead weight, compact structure, energy-conservation, environmental protection, maintenance free

Working temperature: -10°C~40°C

Control mode: Pendant /wireless remote

TECHNICAL PARAMETERS

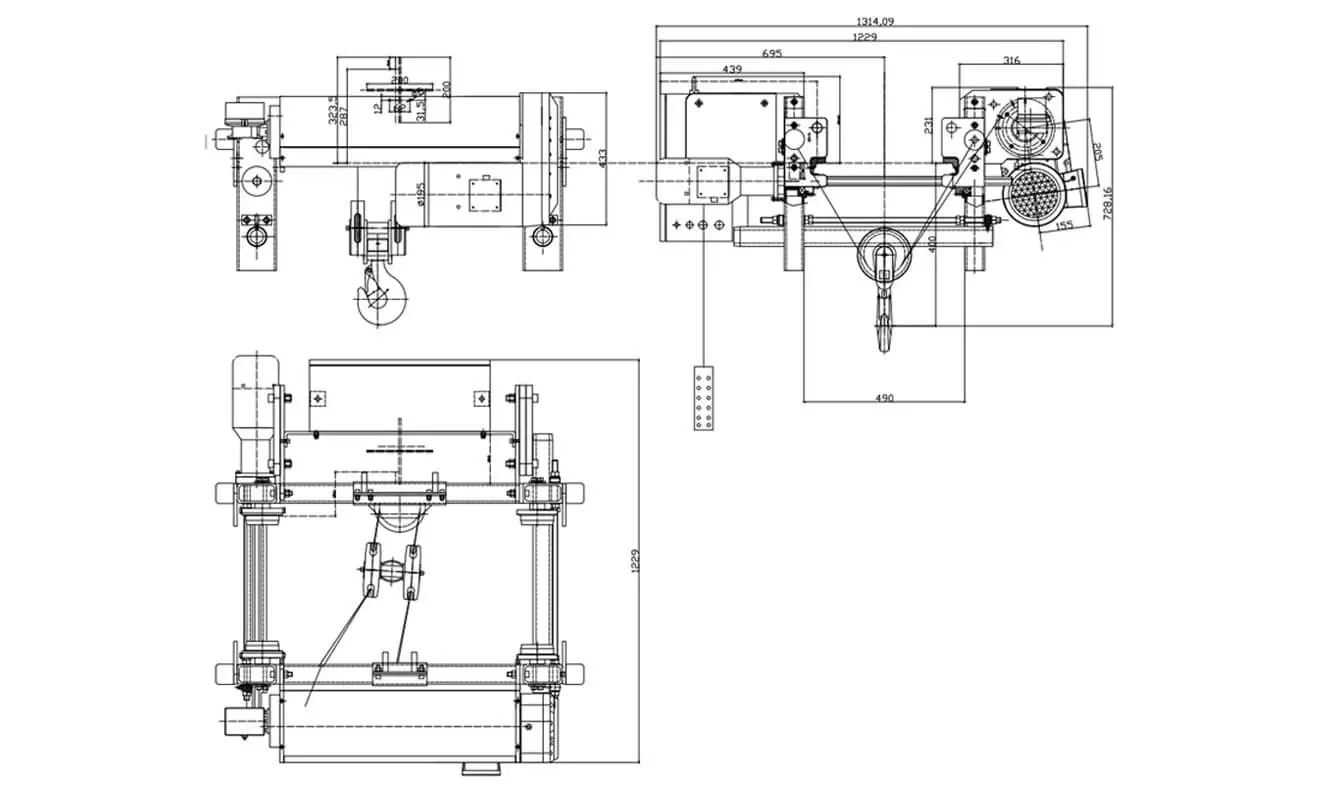

S.W.L(Kg)	working class (FEM)	working class (ISO)	Hoisting height (m)	Hoisting speed (m/min)	Traveling speed (m/min)	H(mm)	C(mm)
1000	4M	M7	6/9/12/18	0.8/5	5-20	232	500
2000	3M	M6	6/9/12/18	1.3/8	5-20	232	500
2500	3M	M6	6/9/12/18	1.0/6.3	5-20	232	500
3200	3M	M5	6/9/12/18	1.0/6.3	5-20	232	500
5000	3M	M6	6/9/12/18	1/6.3	5-20	321	740
6300	4M	M7	6/9/12/18	0.8/5	5-20	321	740
8000	3M	M6	6/9/12/18	0.8/5	5-20	321	740
10000	3M	M6	6/9/12/18	0.66-4.0	5-20	321	740
12500	2M	M5	6/9/12/18	0.66-4.0	5-20	321	740
16000	2M	M5	6/9/12/18	0.6/4.0	5-20	411	850
20000	1AM	M4	6/9/12/18	0.6/4.0	5-20	411	850
