Product description

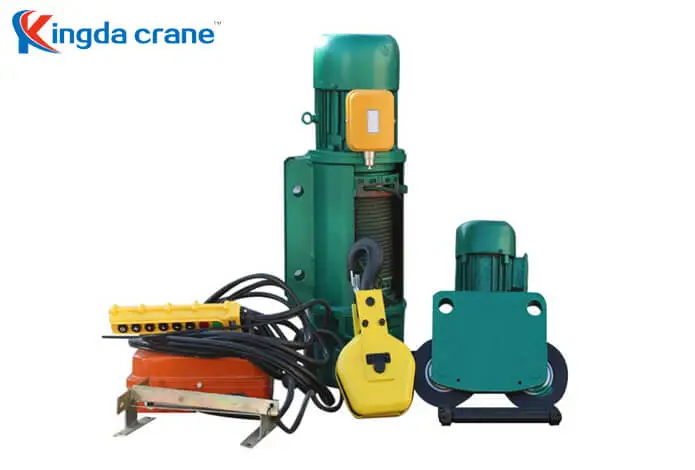

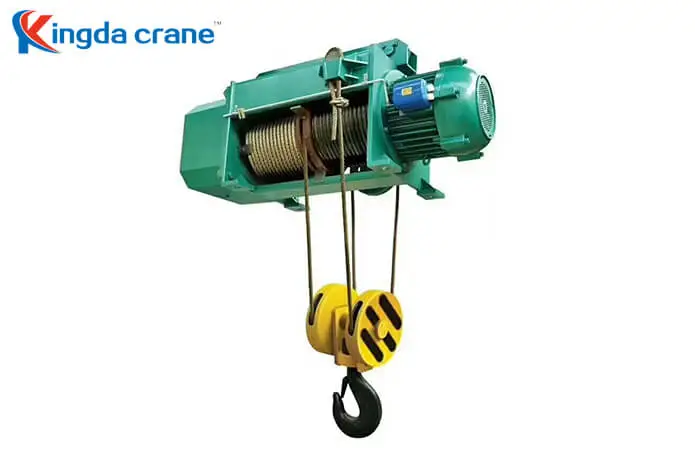

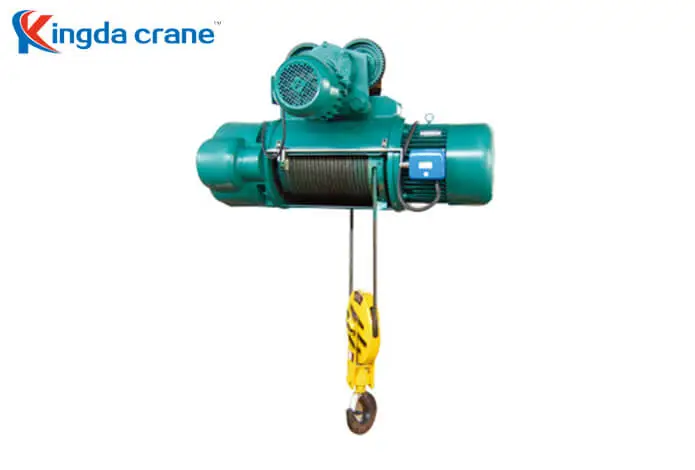

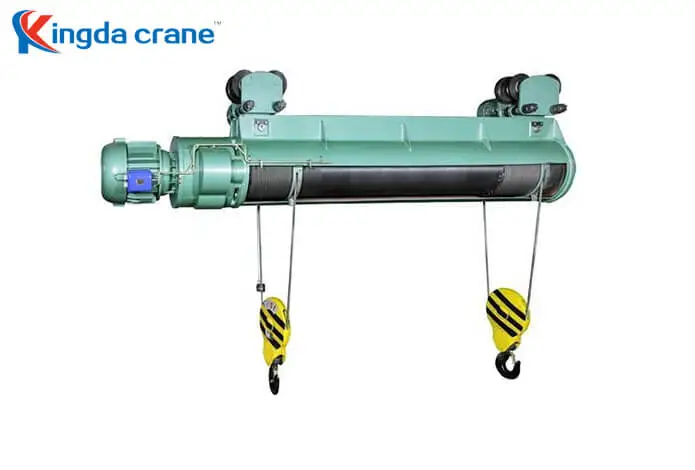

Monorail wire rope electric hoist (electric hoist block) is a small size lifting equipment, which can be mounted on single beam, bridge crane, gantry crane and arm crane. With slight modification, monorail wire rope electric hoist can be used as winch. It is widely used in factory, mines, harbors, warehouse, cargo storage, metals production, industry and shops, raising working efficiency and improving working condition

Lifting capacity: 0.5-32T

Working class: M3 -M5

Lifting speed: Single speed or double speed

Feature: Light dead weight, small volume, easy operation

Operation environment: Factory/mines/harbors/warehouse/cargo storage/workshops /metallurgical Industry

Working temperature: -10°C~40°C

Control mode: Pendant /wireless remote

TECHNICAL PARAMETERS

Lifting Capacity(T)		0.5			1			3			5			10			20			32
Lifting Height(M)		3	6	9	6	12	30	6	12	30	6	12	30	9	12	30	9	12	30	12	20	24
Lifting Speed(m/min)		8/0.8			8/0.8			8/0.8			8/0.8			7/0.7			4.2/0.42			3/0.3
Cross speed(m/min)		20			20/30			20/30			20/30			20/30			21.5			26
wire rope	Dia(mm)	3.6			4.8			13			15			15			19.5			26
	Structure	6*19			6*37+1			6*37+1			6*37+1			6*37+1			6*37+1			6*37+1
Traveling Track		16-28b			16-28b			20a-32c			25a-45c			30T-45c			40b-63c			above 63c
Min Curvature Radius(m)		1.5			1.5	2	4	2	2.5	4	2.5	3	6	3.5	4	9	3.5	4
Lifting Motor	power(kw)	0.2/0.8			0.4/1.5			0.4/4.5			0.8/7.5			1.5/13			2.2/18.5			2.2/18.5
	Rotation speed (r/min)	1380			1380			1380			1380			1380			1380			1380
	Current(A)	0.72/2.4			12.5/4.3			1.25/11			2.4/18			4.3/30			42			43
Cross Motor	power(kw)	0.2			0.2			0.4			0.8			0.8*2			0.8*4			0.8*4
	Rotation speed (r/min)	1380			1380			1380			1380			1380			1380			1380
	Current(A)	0.72			0.72			1.25			2.4			2.4			4.3			4.3

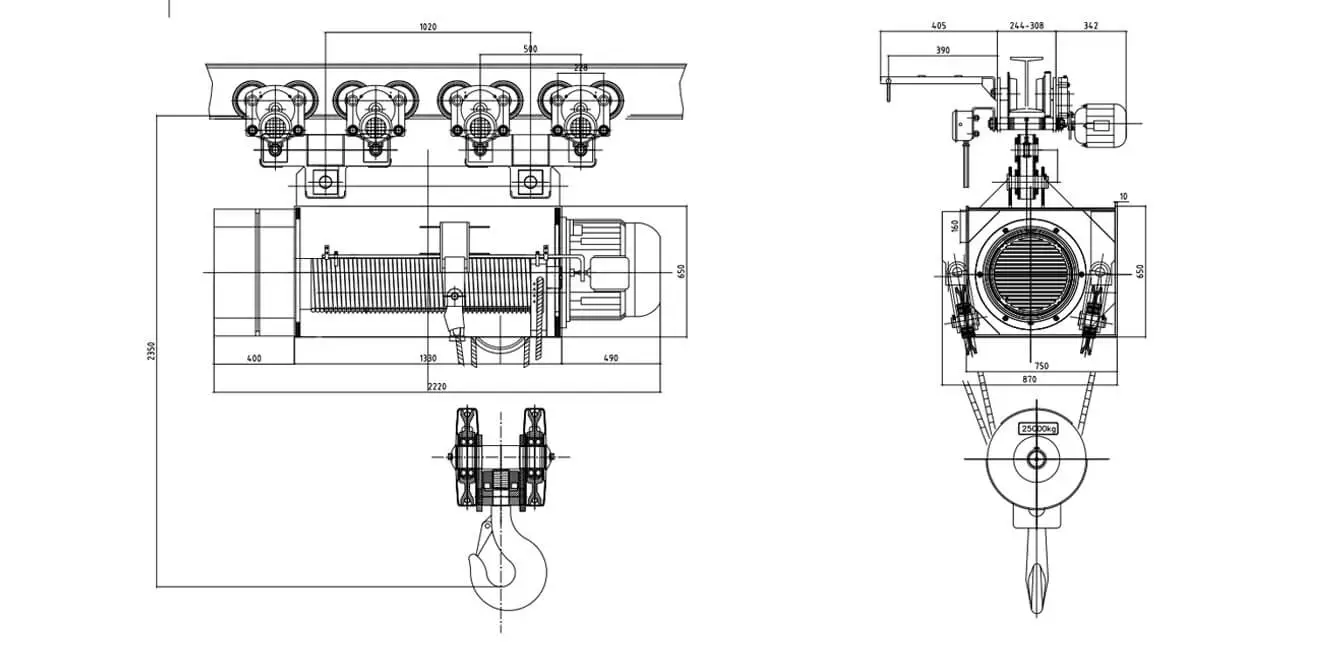

Basic size	L	616	688	760	758	954	1542	915	1121	1738	1047	1257	1887	1602	1783	2869	1747	1942	2997	2127	2697	2982
	L1	274	346	418	345	541	1129	380	586	1204	415	625	1255	875	1056	2142	948	1143	2409	1270	1840	2125
	L2	125			158			229			267			301			330			396
	L3	318	390	462	401	597	1185	448	654	1272	485	695	1325	949	1130	2216	1053	1246	2301	1130	1700	1985
	L4	190			1961			264			320			376			670			600
	B	884			884			930			1058			1058			548	743	2009	320
	H	650			667	767		954	1058		1120	1283		1350			288-310			2500（1500）
	D	14.5			19			25			31			30			25			25
Self weight	Lifting single speed	121	125	130	137	172	220	281	354	451	437	597	726	1048	1098	1411	2450	1927	2169	2950	3495	3700
	Lifting double speed	138	142	147	164	199	247	311	384	481	530	654	783	1104	1154	1467
