How a Intelligent Double Girder Grab Crane Handles Slag in Steel-Making Plant ?

DATE: Jun 10th, 2023
Read:
Share:

1. Project Background

Kingda crane intelligent double girder grab crane for slag handling is a new type lifting crane, it can be controlled by cab, by radio, by semi-automatic, by fully automatic or central control room.
Fitted with 3D scanner, motor encoder, PLC, data communication system and central processing system, it becomes an independent operation equipment, no need personal assistance, high efficiency, cost-saving.

Guangdong Shao Steel # 7 blast furnace is built up in 2013, have being service for the whole steel production plant as long as 10 years, it need a complete repair in hurry. At the same time, the plant owner-Guangdong Shao Steel wants to add intelligent elements to BF’S control system and operation.

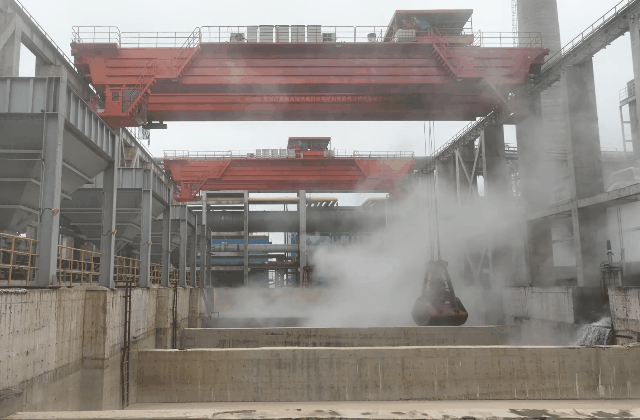

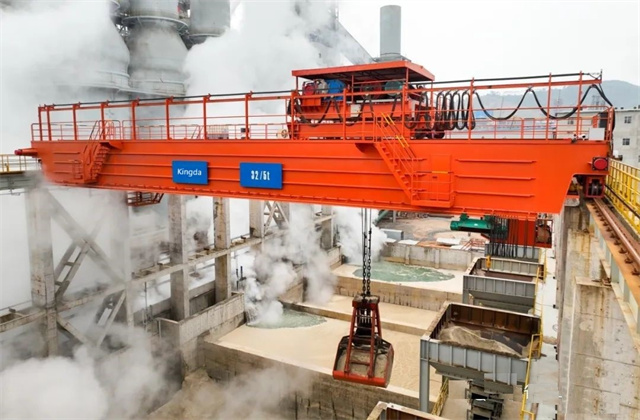

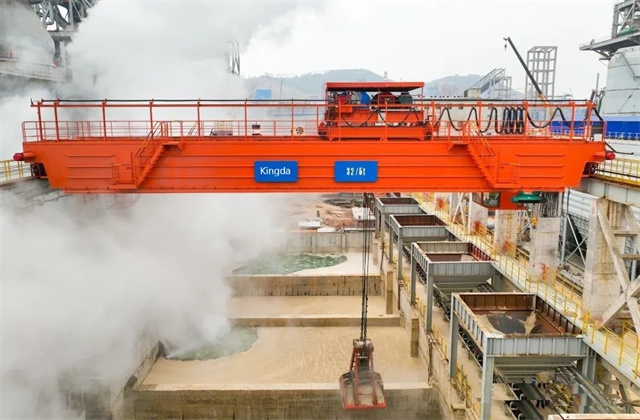

# 7 blast furnace is 2200m3, including 3 iron notches, 2 casting house (C1 casting house and C2 casting house). Every casting house fitted with 1 set slag handling system, every set slag handling system fitted with 2 sets intelligent double girder overhead grab crane for slag handling.




2. Key Technical Parameter

No. Item technical parameter
1 Rated lifting capacity main lifting(grab): 16t
aux. hook:5t
2 working class A6
3 grab volume 6m3
4 rail level ~13.50m
5 lifting height grab: ~19m
6 Aux.: ~19m
7 span south water granulated slag
8 north water granulated slag
9 long travel length ~50m
10 power source 3 phases A.C. 380V 50Hz
11 crane power supply mode steel sliding wire( opposite cabin room)
12 motor protection class IP54
13 operation environment outdoor, steam, strong corrosion
14 control mode cabin, remote control, central control room
15 long travel speed 7.5~110m/min
16 cross travel speed 4.3~43.5m/min
17 lifting speed 4.2~42m/min
18 rail mode QU70
19 others 1.  grab's open-close direction should vertical to crane main girder;
2.  all motors apply inverter motor, fitted with frequency inverter and inverter control electrical room; (aux. hook no need inverter);
3.  fitted with crane positioning system, include lifting mechanism positioning encoder, grab open-close positioning encoder, long travel and cross travel positioning encoder, related proximity switch;
4.  wire rope fitted with tension meter;
5.  grab should be fitted with weighting device (electronic scale);
6.   the crane can be controlled and operated in smart mode
7.   grab should be fitted with sway control service;
8.  crane's total width should be ≤8m




3. Technical Advantages

  ►  This intelligent double girder grab crane is customized by end user’s strategy requirement, conform to green
        development trends, manufactured depending on project’s features.

  ►  Carry PLC control system, positioning system, sway-control intelligent integration system, positioning precision, high
        efficiency running;

  ►  Mechanical design applies wide box weld girder and heavy duty structure, high tension anti-fatigue, cope with high-
        temperature, high-humidity, high-fog and high-corrosion;

  ► Combine smart perception system, can autocratically fulfill material’s grab, release and transportation operation under
       very low visibility high vapor environment.

  ► No need operation in crane’s working site, can be controlled in site through remote distribution and management system,
      can reduce operating worker’s work duty greatly.


4. Control mode

• Radio control
• Cab control
• Semi-automatic control
• Automatic mode

• Warehouse management system (WMS)


5. Scope of Supply

Kingda crane intelligent double girder overhead grab for slag handling follows the rule of Electromechanical integration to provide to the end user.
Intelligent system and subsidiary equipment list

No. Mechanism Technical requirement Quantity Suppiler
1 1. Intelligent double girder overhead grab crane for slag handling electrical parts
2  long travel motor inverter motor;
fitted with running position absolute encoder;
encoder single is connected to crane PLC;
1 set Kingda Crane
3 cross travel motor inverter motor;
fitted with running position absolute encoder;
encoder single is connected to crane PLC;
1 set Kingda Crane
4 lifting motor inverter motor;
fitted with running position absolute encoder;
encoder single is connected to crane PLC;
1 set Kingda Crane
5 grab open-close motor inverter motor;
fitted with lifting wire rope position absolute encoder;
encoder single is connected to crane PLC;
1 set Kingda Crane
6 crane position limiting device long travel limit switch; cross travel limit switch;
grab lifting-lowering limit switch;
2 sets crane anti-collision limit device
1 set Kingda Crane
7 motor frequency transforming cabinet crane travel motor, lifting motor and open-close motor, all motors' speed controlled by inverter; inverter can exchange data with crane PLC control system through hard-wired and network communication 1 set Kingda Crane
8 PLC control system can fulfill crane's control and protection independent;
crane can be controlled in crane's cabin or control in remote under crane
1 set Kingda Crane
9 compressor service for electrical room,3D scanning device, providing compressed air to purge (outlet discharge:240m3/h; outlet pressure:0.8Mpa),
the entrance set up filter to deal with sulphur steam
1 set Kingda Crane
10 2. Intelligent double girder overhead grab crane for slag handling smart parts
11 2.1 intelligent operation system
12 wireless communications system kingda crane duty for reserving equipment power supply interface (220V,AC,6A quantity:2 set) and RJ45 network port s piece; wireless AP parameter: operating frequency:5GHZ; throughput:450+Mbps; scope:5+KM; stable wide flow range should ≥150M 1 set Kingda Crane
13 long travel running positioning system kingda crane duty for reserving equipment power supply interface (220V,AC,6A quantity:1 set) and RJ45 network port 1 piece;  1 set Kingda Crane
14 cross travel running positioning system kingda crane duty for reserving equipment power supply interface (220V,AC,6A quantity:2 set, one for cross travel, the other for electrical room) and RJ45 network port 1 piece;  1 set Kingda Crane
15 long travel running positioning correction switching value single, to service for encoder correct position, the single is connected to crane PLC control system DI model  2 sets Kingda Crane
16 cross travel running positioning correction switching value single, to service for encoder correct position, the single is connected to crane PLC control system DI model  1 set Kingda Crane
17 long travel running positioning detector encoder, to detect crane long travel position, single send to crane PLC control system through ethernet; 1 set Kingda Crane
18 cross travel running positioning detector encoder, to detect crane cross travel position, single send to crane PLC control system through ethernet; 1 set Kingda Crane
19 grab open-close detector encoder, to detect grab lifting-lowering wire rope's position, single send to crane PLC control system through ethernet; 1 set Kingda Crane
20 grab lifting-lowering detector encoder, to detect grab lifting-lowering wire rope's position, single send to crane PLC control system through ethernet; 1 set Kingda Crane
21 tension transducer  detecting position: grab's open-close wire rope  2 set Kingda Crane
22 2. digital slag bath system
23 3D scanner kingda crane duty for reserving equipment power supply interface (220V,AC,6A quantity: 2 set) and RJ45 network port 1 piece;
scanner's power supply be controlled by electric relay, electric relay control single be connected to crane PLC control system DO module.
1 set Kingda Crane
24 3D scanner single analysis-processing system industrial computer 1 set Kingda Crane


6. Technical Proposal Drawing



7. Equipment Maintenance

  1. 7.1 intelligent double girder overhead grab for slag handling crane is special equipment with high danger, there should be pointed workers to duty for operate, maintenance, inspect and repair, must be staff to guardianship when crane been carry out those operation; All limit switch, brake are in invalid, must repair and in valid again, then can be used again;
  2. 7.2 Before put into usage every time, operator must crane’s brake is in valid or not, guarantee it is in good working condition, then can carry out lifting operation;
  3. 7.3 When operate the crane, the crane operator must be concentrated, careful operation; Stricktly forbid grab to collide lifting limit switch, Stricktly forbid grab to collide pool wall, Stricktly forbid trolley to collide two side’s anti-collision;
  4. 7.4 After finishing operation every time, must move the grab out of the pool and 10cm from the ground, cut off main power, hang the switch box in specified place; Wash THE grab in clear, lubricate every transmission mechanism;
  5. 7.5 Every season, mechanic on leading, operative employees assist, to move the trolley to maintenance platform,
  6.     (1)  Clean hoist trolley and open winch device;
  7.     (2)  Fitted with bolts and nuts defecting component in enough;
  8.     (3)  Lubricate trolley’s connecting shaft and limit switch axle;
  9.     (4)  Test crane’s lifting limit switch and trolley’s left -right limit switch;
  10.     (5)  Inspect and adjust crane’s lifting-lowering brake, should be in reliable, sensitive, two brakes should in same
  11.           direction.
