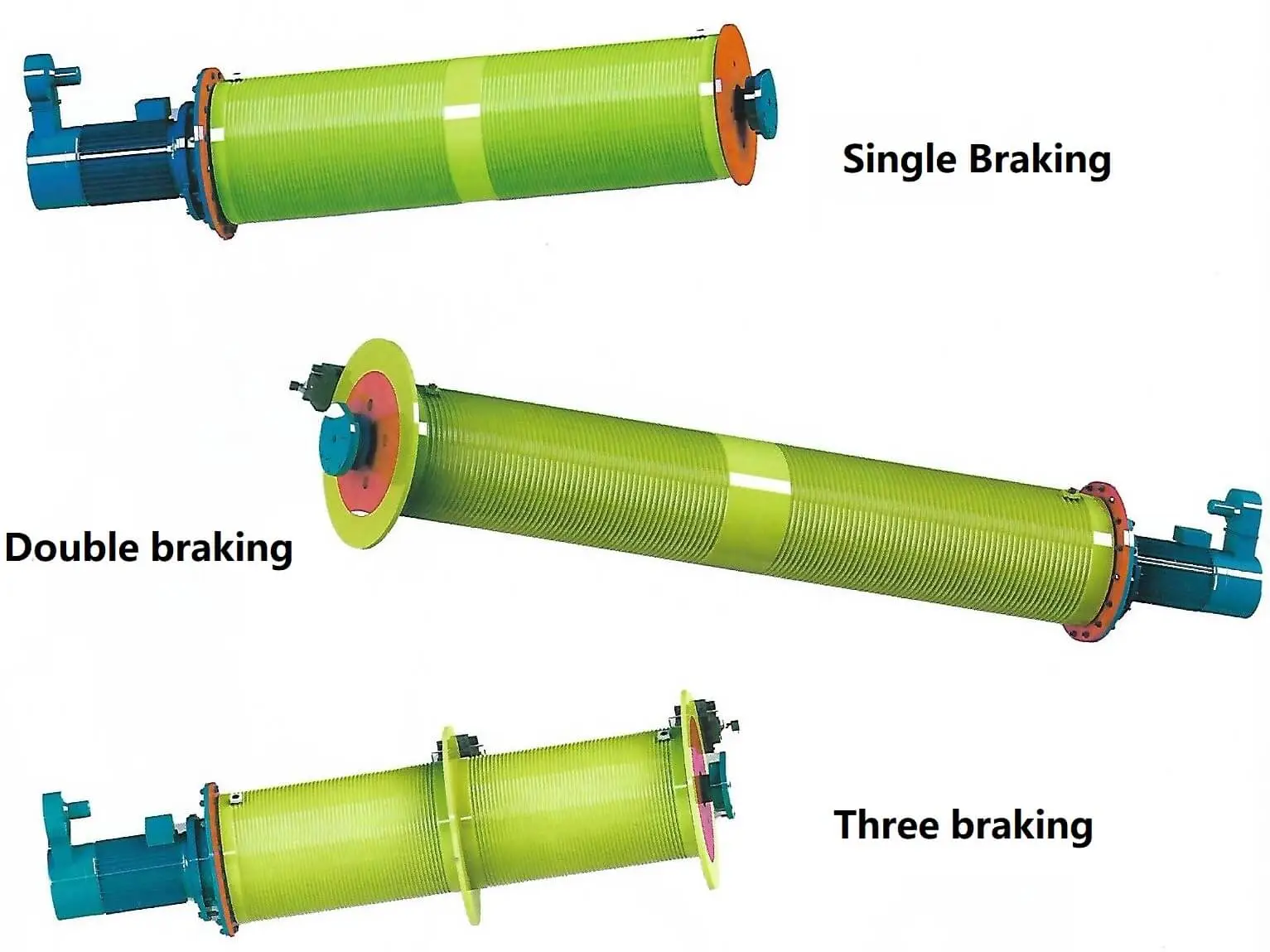

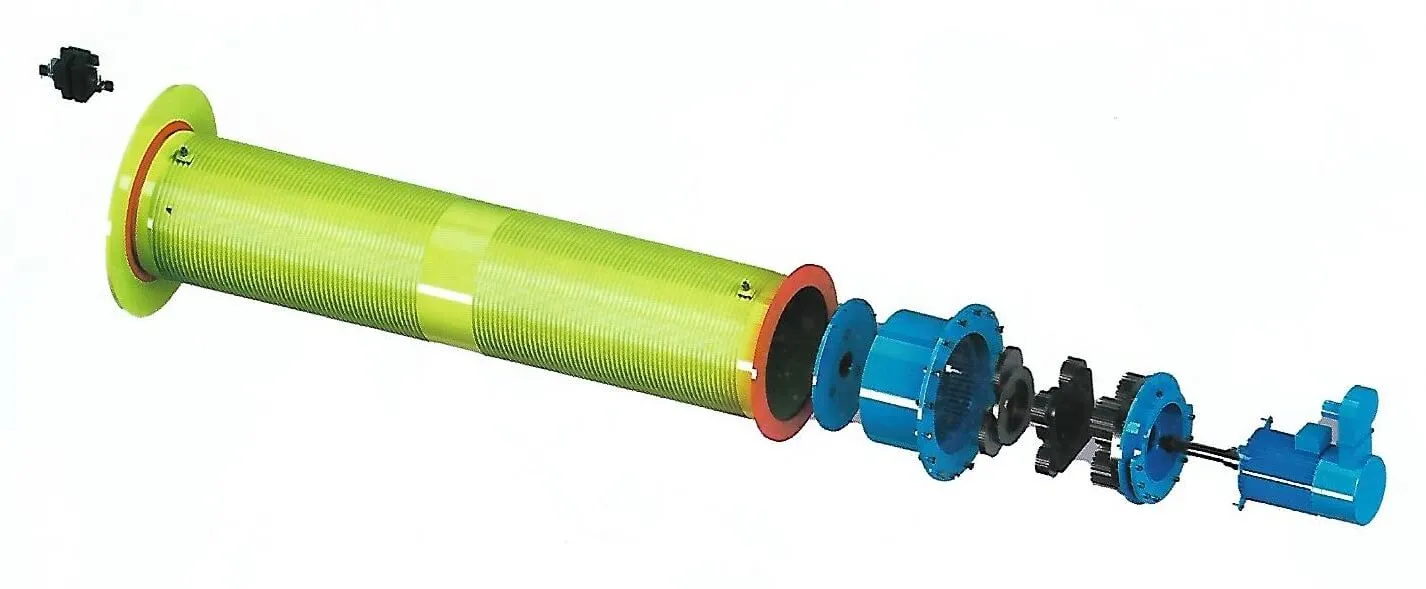

1. Introduction of Planetary Drive Crane Lifting Mechanism | |
characteristics: | |
1. | Adopting a built-in high-precision, hard tooth surface, and high torque planetary gear reducer |
2. | It has the advantages of stable hoisting braking, high transmission efficiency, compact structure, convenient installation, strong bearing capacity, maintenance free, green and energy-saving, long service life, low noise, etc |
3. | Widely used in aerospace, military industry, metallurgy, nuclear power, railways, engineering machinery, mines, ports, petrochemical and other fields |
4. | Working level: A3-A8 |
Planetary Drive Crane Technical Data Table | |||||||||
Lifting capacity | Duty level | Lifting speed (m/min) |
Lifting power (Kw) |
Power(V/Hz) | Current (A) |
Motor speed (r/min) |
Braking torque (N.m) |
Lifting height (m) |
Reduction ratio |
5t | M5 | 1.2~12 | 11 | 380/50 | 22.8 | 1450 | 150 | 9/12/15/18 | 83.72 |
M6 | 1.2~12 | 11 | 22.8 | 1450 | |||||
M7 | 0.6~6 | 11 | 22.8 | 1450 | 161.22 | ||||
M8 | 0.6~6 | 11 | 22.8 | 1450 | |||||
10t | M5 | 0.6~6 | 11 | 22.8 | 1450 | 150 | 9/12/15/18 | 161.2 | |
M6 | 0.6~6 | 11 | 22.8 | 1450 | |||||
M7 | 0.4~4 | 15 | 34 | 1460 | 200 | 99.74 | |||
M8 | 0.6~6 | 22 | 42 | 1460 | |||||
16t | M5 | 0.4~4 | 15 | 34 | 1460 | 200 | 9/12/15/18 | 99.74 | |
M6 | 0.6~6 | 22 | 43 | 1460 | |||||
M7 | 0.4~4 | 15 | 34 | 1460 | 99.74 | ||||
M8 | 0.6~6 | 22 | 43 | 1460 | |||||
20t | M5 | 0.4~4 | 15 | 34 | 1460 | 300 | 9/12/15/18 | 99.74 | |
M6 | 0.6~6 | 22 | 43 | 1460 | |||||
M7 | 0.45~4.8 | 30 | 60 | 1460 | 600 | 95 | |||
M8 | 0.72~7.2 | 45 | 88 | 1462 | |||||
32t | M5 | 0.48~4.8 | 30 | 60 | 1462 | 600 | 9/12/15/18 | 95 | |
M6 | 0.72~7.2 | 45 | 86 | 1462 | |||||
M7 | 0.32~3.2 | 30 | 60 | 1462 | |||||
M8 | 0.48~4.8 | 45 | 86 | 1462 | |||||
50t | M5 | 0.32~3.2 | 30 | 60 | 1462 | 600 | 9/12/15/18 | 95 | |
M6 | 0.48~4.8 | 45 | 86 | 1462 | |||||
M7 | 0.31~3.1 | 45 | 86 | 1462 | 900 | 131.89 | |||
M8 | 0.47~4.7 | 62 | 119 | 1462 | |||||
75t | M5 | 0.31~3.1 | 45 | 86 | 1475 | 900 | 12/15/18/20 | 131.89 | |
M6 | 0.47~4.7 | 62 | 119 | 1475 | |||||
M7 | 0.22~2.2 | 45 | 86 | 1475 | |||||
M8 | 0.35~3.5 | 62 | 119 | 1475 | |||||
100t | M5 | 0.22~2.2 | 45 | 86 | 1475 | 900 | 12/15/18/20 | 131.89 | |
M6 | 0.35~3.5 | 62 | 119 | 1475 | |||||
M7 | 0.27~2.7 | 75 | 86 | 1480 | 1500 | 128.36 | |||
M8 | 0.4~4 | 110 | 119 | 1480 | |||||
150t | M5 | 0.27~2.7 | 75 | 142 | 1480 | 1500 | 12/15/18/20 | 128.36 | |
M6 | 0.4~4 | 110 | 202 | 1480 | |||||
M7 | 0.2~2 | 75 | 142 | 1480 | |||||
M8 | 0.3~3 | 110 | 202 | 1480 | |||||
200t | M5 | 0.2~2 | 75 | 142 | 1480 | 1500 | 12/15/18/20 | 128.36 | |
M6 | 0.2~2 | 110 | 202 | 1480 | |||||
M7 | 0.37~3.7 | 110*2 | 202*2 | 1480 | 1500*2 | 140.68 | |||
M8 | 0.24~2.4 | 110*2 | 202*2 | 1480 | 140.68 | ||||
220t | M5 | 0.27~2.7 | 110*2 | 202*2 | 1480 | 1500*2 | 12/15/18/20 | 140.68 | |
M6 | 0.24~2.4 | 110*2 | 202*2 | 1480 | 140.68 | ||||
500t | M5 | 0.24~2.4 | 110*2 | 202*2 | 1480 | 1500*2 | 140.68 |
2. Performance Advantages of Planetary Drive Crane Lifting Mechanism |
Integration: | |
The driver unit, control unit, and display unit are integrated into one unit, and are debugging free when leave the factory | |
Modular: | |
Modular design, 5 specifications of lifting mechanisms, covering 5-500t, lifting speed covering 0.2-12m/min | |
Networking: | |
It can be equipped with a built-in 5G IoT module, which sends network signals to the cloud processor, processes them, and then sends them to the ground receiving station, enabling remote real-time monitoring and fault diagnosis | |
Intelligence: | |
Equipped with a complete set of drive units, factory debugging free, capable of achieving zero speed hovering function, infinite speed regulation, precise positioning, human-machine interaction and other functions. It can be easily integrated into the DFMES system, allowing users to better understand the implementation of equipment, providing a basis for Wei's business activities, and providing data support for relevant decision-makers. | |
Greenization: | |
Overall weight is light, layout is compact, transmission efficiency is high, and noise is low | |
stability: | |
Flexible start stop without impact, reducing impact, achieving long-term stable operation, and extending service life | |
Flexible form: | |
The lifting mechanism can be perpendicular to the main beam, parallel to the main beam, and suspended from the main beam |

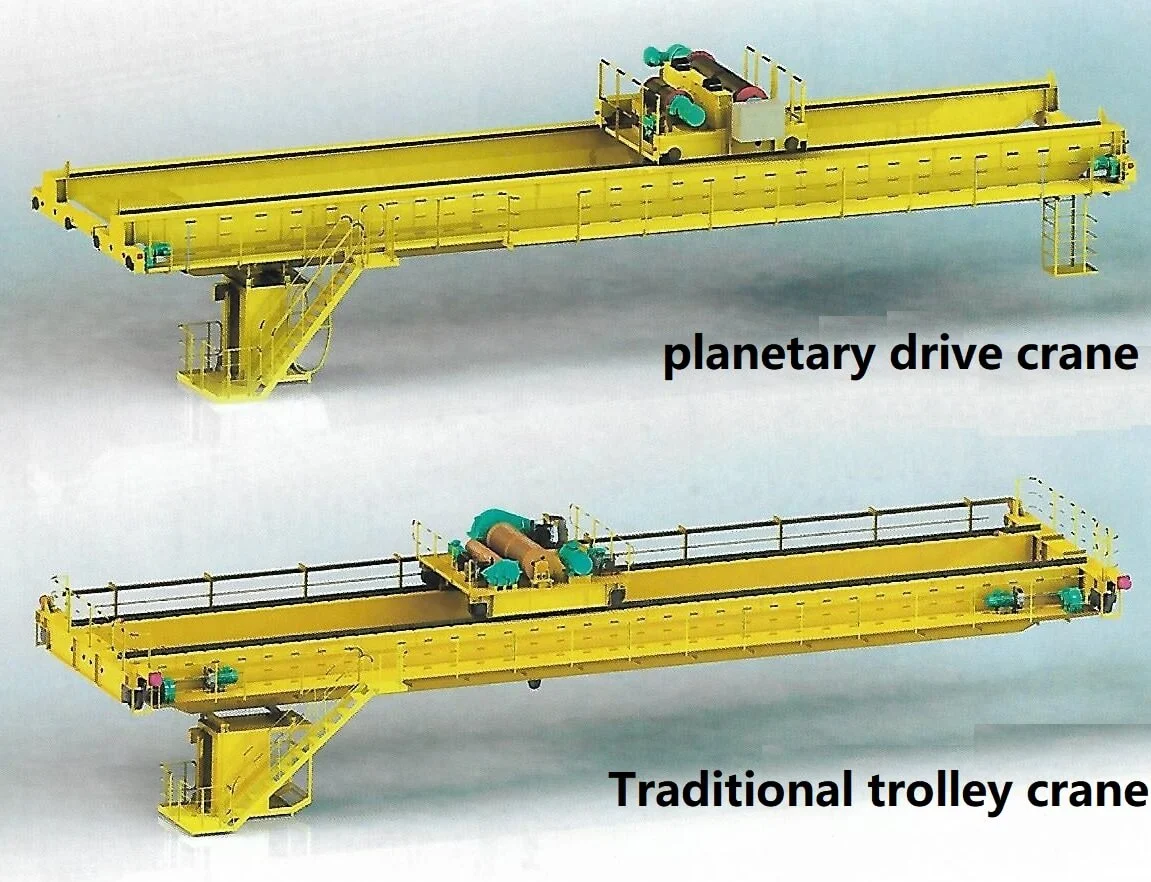

3. Trolley Weight Comparison Table Between planetary Drive Crane and Traditional Crane |
Lifting tons | 5t | 10t | 16/5t | 20/5t | 32/5t | 50/10t | 75/20t | 100/20t | 125/32t | 160/32t | 320/80t |
Weight comparison between tradditional trolley and Plannetary trolley(%) |
-37 | -47.66 | -41.7 | -43.5 | -40.87 | -46.98 | -52.48 | -47.77 | -42.15 | -57.54 | -58.28 |
4. Comparison Table Between planetary Drive Crane and Traditional Crane |
Crane left-right hook approach comparison table |
Lifting tons | 5t | 10t | 16/5t | 20/5t | 32/5t | 50/10t | 75/20t | 100/20t | 125/32t | 160/32t |
Traditional crane left hook approach | 800 | 1050 | 1850 | 2050 | 2050 | 2200 | 2260 | 2550 | 2940 | 3220 |
planetary drive crane left hook approach | 780 | 830 | 1330 | 1330 | 1370 | 1530 | 1010 | 2170 | 2340 | 2470 |
Traditional crane right hook approach | 1250 | 1300 | 1500 | 1500 | 1580 | 1720 | 2475 | 2650 | 2760 | 2800 |
planetary drive crane right hook approach | 1160 | 1200 | 1330 | 1330 | 1480 | 1530 | 1900 | 1900 | 2000 | 2000 |
5. Planetary Drive Overhead Crane Performance Parameter Table |

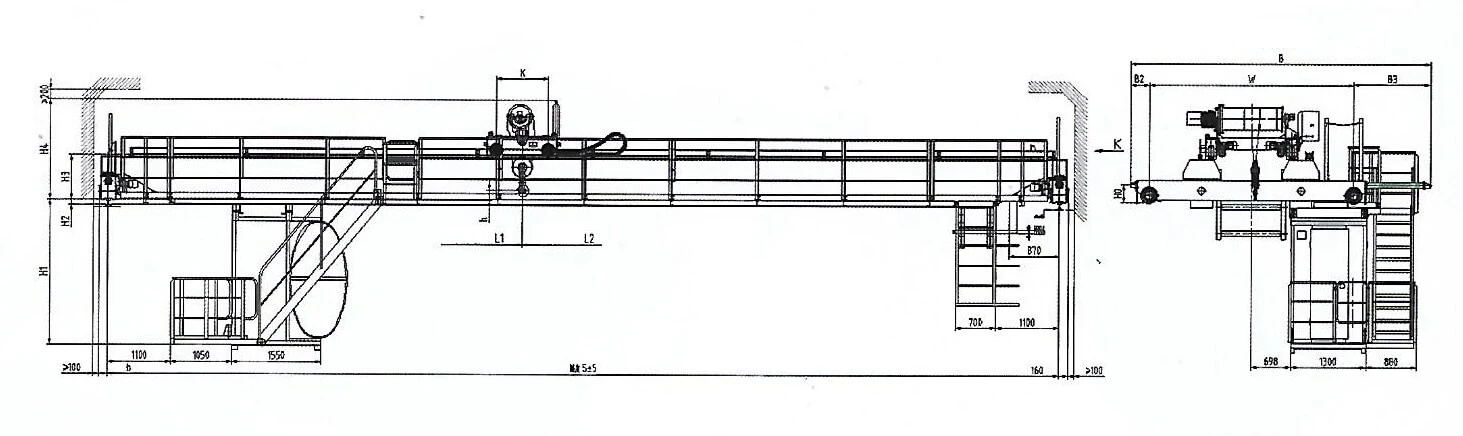

5t-10t technical parameter | ||||||||||||||||
Lifting capacity | Main hook | t | 5 | 10 | ||||||||||||
Aux. hook | - | - | ||||||||||||||
Span | m | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | |
Lifting height | Main hook | 18 | 18 | |||||||||||||
Aux. hook | - | - | ||||||||||||||
Working duty | A5/A6 | A5/A6 | ||||||||||||||
Speed | Main hook | m/min | 1.2~12 | 0.6~6 | ||||||||||||
Aux. hook | - | - | ||||||||||||||
Cross travel | 2.6~26 | 2.6~26 | ||||||||||||||
Long travel | 5.8~58 | 5.7~57 | 5.1~51 | |||||||||||||
Hook approach dimension | L1 | mm | 787 | 837 | 797 | |||||||||||
L2 | 1162 | 1212 | 1272 | |||||||||||||
L | - | - | ||||||||||||||
h | 205 | 165 | 165 | 217 | 257 | 45 | 45 | 47 | 197 | 199 | 201 | |||||
h1 | - | - | ||||||||||||||
Main dimension | Ho | mm | 330 | 350 | 300 | 350 | ||||||||||
H1 | 2490 | 2509 | 2609 | 2559 | 2659 | 2709 | 2759 | 2409 | 2509 | 2609 | 2509 | 2559 | 2609 | 2659 | ||
H2 | 11 | 89 | 189 | 139 | 239 | 289 | 339 | 11 | 89 | 189 | 89 | 139 | 139 | 239 | ||
H3 | 765 | 817 | 765 | 767 | 917 | 919 | 921 | |||||||||
H4 | 1710 | 1762 | 1770 | 1772 | 1922 | 1924 | 1926 | |||||||||
K | 900 | 1000 | ||||||||||||||
W | 3550 | 4050 | 3700 | 4200 | ||||||||||||
B | 5202 | 5324 | 5660 | 5352 | 5652 | 58305041126 | ||||||||||
B2 | 326 | 326 | 504 | 326 | 326 | |||||||||||
B3 | 1326 | 948 | 1126 | 1326 | 1126 | |||||||||||
b | 160 | |||||||||||||||
Max. wheel pressure | KN | 50 | 53 | 59 | 64 | 70 | 75 | 80 | 75 | 79 | 85 | 92 | 96 | 102 | 108 | |
Total power | KW | 14.74 | 16.14 | 16.5 | ||||||||||||
Recommend rail | 38kg/m | 38kg/m 43kg/m | ||||||||||||||
Power supply | AC 380V 50HZ |

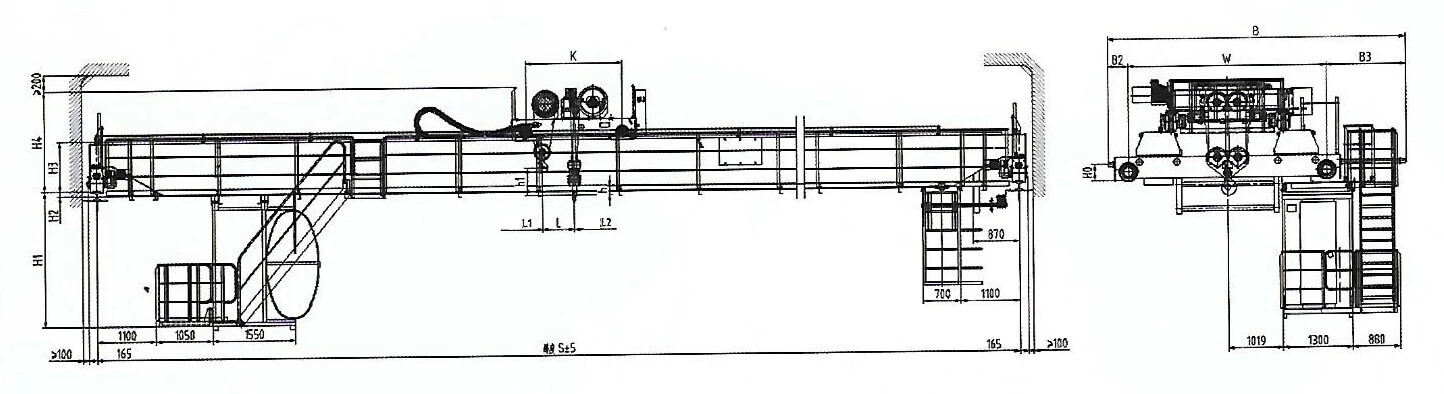

16t-10t technical parameter | ||||||||||||||||
Lifting capacity | Main hook | t | 16 | 20 | ||||||||||||
Aux. hook | 5 | 5 | ||||||||||||||
Span | m | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | |
Lifting height | Main hook | 18 | 18 | |||||||||||||
Aux. hook | 18 | 18 | ||||||||||||||
Working duty | A5/A6 | A5/A6 | ||||||||||||||
Speed | Main hook | m/min | 0.4~4/0.6~6 | 0.4~4/0.6~6 | ||||||||||||
Aux. hook | 1.2~12 | 1.2~12 | ||||||||||||||
Cross travel | 3.5~35 | 3.5~35 | ||||||||||||||
Long travel | 5.1~51 | 5.1~51 | ||||||||||||||
Hook approach dimension | L1 | mm | 743 | 743 | ||||||||||||
L2 | 1337 | 1337 | ||||||||||||||
L | 594 | 594 | ||||||||||||||
h | 156.5 | 169 | 156.5 | 165 | ||||||||||||
h1 | 518 | 518 | ||||||||||||||
Main dimension | Ho | mm | 330 | 350 | 300 | 350 | ||||||||||
H1 | 2306.5 | 2406.5 | 2506.5 | 2611 | 2721 | 2871 | 2971 | 2306.5 | 2406.5 | 2506.5 | 2611 | 2721 | 2871 | 2971 | ||
H2 | 113.5 | 13.5 | 86.5 | 201 | 301 | 451 | 551 | 113.5 | 13.5 | 86.5 | 201 | 301 | 451 | 551 | ||
H3 | 921.5 | 909 | 921.5 | 909 | ||||||||||||
H4 | 1866.5 | 1882 | 1870.5 1772 |
1886 | ||||||||||||
K | 1800 | 1800 | ||||||||||||||
W | 3700 | 4000 | 3700 | 4200 | ||||||||||||
B | 5552 | 5752 | 5980 | 5352 | 5652 | 5830 | ||||||||||
B2 | 376 | 326 | 554 | 326 | 326 | 504 | ||||||||||
B3 | 1476 | 1426 | 1426 | 1326 | 1126 | 1126 | ||||||||||
b | 165 | 190 | 160 | 165 | 190 | 160 | ||||||||||
Max. wheel pressure | KN | 115 | 121 | 129 | 69 | 121 | 76 | 80 | 132 | 140 | 150 | 80 | 84 | 87 | 91 | |
Total power | KW | 30.2 | 32.2 | 30.2 | 32.2 | |||||||||||
Recommend rail | 43kg/m | 43kg/m | ||||||||||||||
Power supply | AC 380V 50HZ |

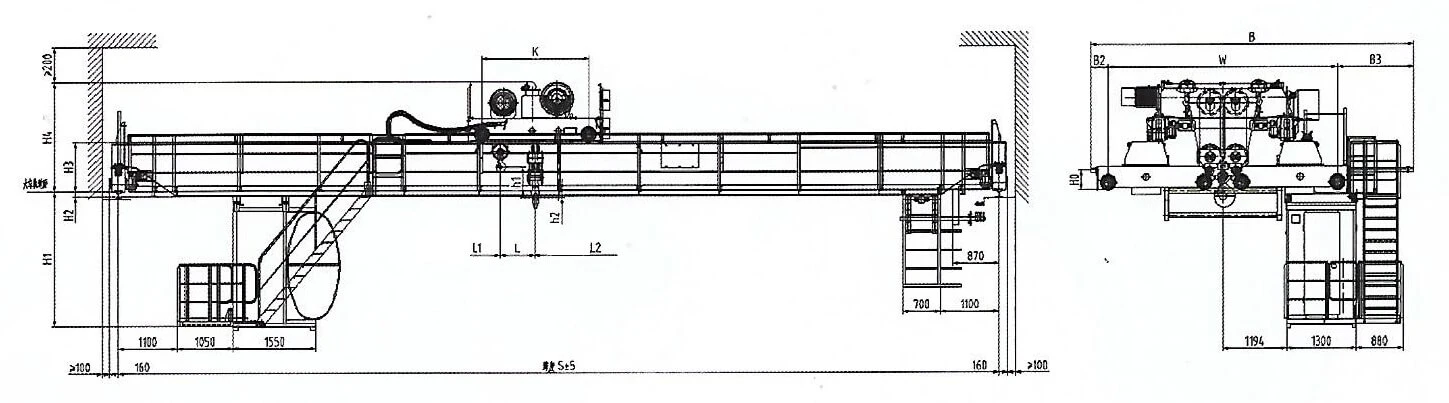

32t-50t technical parameter | ||||||||||||||||
Lifting capacity | Main hook | t | 32 | 50 | ||||||||||||
Aux. hook | 5 | 5 | ||||||||||||||
Span | m | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | |
Lifting height | Main hook | 18 | 18 | |||||||||||||
Aux. hook | 18 | 18 | ||||||||||||||
Working duty | A5/A6 | A5/A6 | ||||||||||||||
Speed | Main hook | m/min | 0.48~4.8/0.72~7.2 | 0.32~3.2/0.48~4.8 | ||||||||||||
Aux. hook | 1.2~12 | 1.2~12 | ||||||||||||||
Cross travel | 3.0~30 | 3.2~32 | ||||||||||||||
Long travel | 5.4~54 | 5.1~51 | ||||||||||||||
Hook approach dimension | L1 | mm | 818 | 900 | 886 | |||||||||||
L2 | 1487 | 1537 | 1537 | |||||||||||||
L | 657 | 637 | 651 | |||||||||||||
h | 135 | 83 | 81 | 325 | 324 | 320 | 270 | 266 | 216 | 212 | ||||||
h1 | 569 | 600 | ||||||||||||||
Main dimension | Ho | mm | 350 | 350 | ||||||||||||
H1 | 2371 | 2521 | 2671 | 2721 | 2821 | 2971 | 3071 | 2402.5 | 2552.5 | 2752.5 | 2802.5 | 2902.5 | 3002.5 | 3102.5 | ||
H2 | 49 | 101 | 251 | 301 | 401 | 551 | 651 | 17.5 | 132.5 | 332.5 | 382.5 | 482.5 | 582.5 | 682.5 | ||
H3 | 913 | 967 | 957.5 | 959.5 | 1009.5 | |||||||||||
H4 | 2021 | 2073 | 2110 | 2112 | 2112 | 2162 | 2216 | 2220 | ||||||||
K | 2000 | 2100 | ||||||||||||||
W | 4300 | 4900 | ||||||||||||||
B | 6052 | 6280 | 6752 | 6980 | ||||||||||||
B2 | 326 | 554 | 376 | 604 | ||||||||||||
B3 | 1426 | 1476 | 1476 | |||||||||||||
b | 160 | 165 | ||||||||||||||
Max. wheel pressure | KN | 101 | 105 | 110 | 115 | 120 | 124 | 128 | 147 | 153 | 159 | 166 | 173 | 176 | 185 | |
Total power | KW | 56 | 59 | 60.4 | 64.4 | |||||||||||
Recommend rail | 43kg/m | QU70 | ||||||||||||||
Power supply | AC 380V 50HZ |

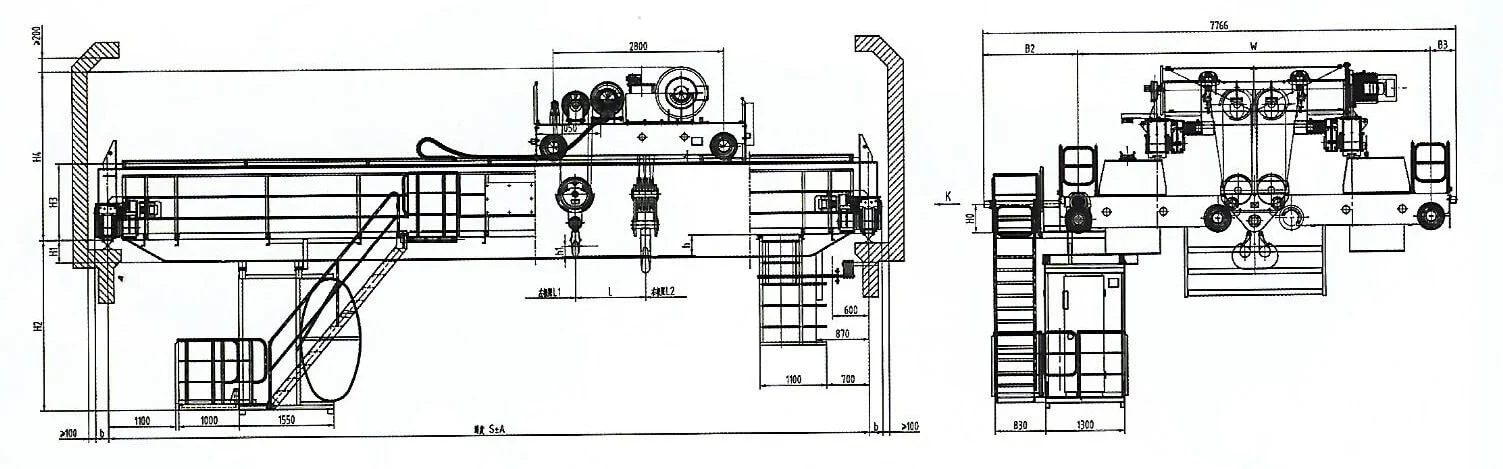

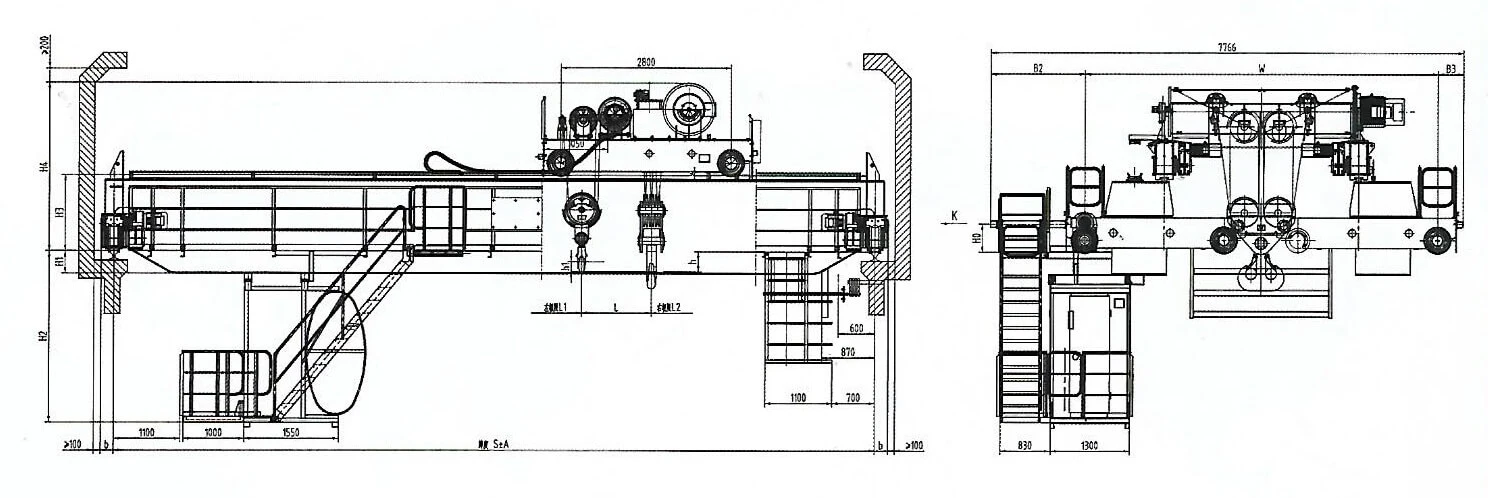

75t-100t technical parameter | |||||||||||||||
Lifting capacity | Main hook | t | 75 | 100 | |||||||||||
Aux. hook | 20 | 20 | |||||||||||||
Span | m | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | |
Lifting height | Main hook | 20 | 20 | ||||||||||||
Aux. hook | 20 | 20 | |||||||||||||
Working duty | A5/A6 | A5/A6 | |||||||||||||
Speed | Main hook | m/min | 0.31~3.1/0.47~4.7 | 0.23~2.3/0.35~3.5 | |||||||||||
Aux. hook | 0.4~4.0/0.6~6.0 | 0.4~4.0/0.6~6.0 | |||||||||||||
Cross travel | 3.0~30 | 2.6~26 | |||||||||||||
Long travel | 4.8~48 | 5.5~55 | |||||||||||||
Hook approach dimension | L1 | mm | 867 | 852 | |||||||||||
L2 | 1887 | 1877 | |||||||||||||
L | 1150 | 1326 | |||||||||||||
h | 449 | 349 | 345 | 750 | 646 | ||||||||||
h1 | 161 | 640 | |||||||||||||
Main dimension | Ho | mm | 460 | 500 | |||||||||||
H1 | 166 | 166 | 366 | 366 | 516 | 520 | 670 | 186 | 286 | 190 | 340 | 540 | 740 | ||
H2 | 2436 | 2586 | 2786 | 2786 | 2936 | 2940 | 3090 | 2606 | 2706 | 2610 | 2710 | 2960 | 3160 | ||
H3 | 913 | 967 | 1276 | 1380 | |||||||||||
H4 | 2021 | 2073 | 3027 | 3131 | |||||||||||
K | 2800 | 3050 | |||||||||||||
W | 5800 | 6800 | |||||||||||||
B | 7766 | 8672 | |||||||||||||
B2 | 1550 | 1396 | |||||||||||||
B3 | 416 | 476 | |||||||||||||
b | 214 | 252 | |||||||||||||
Max. wheel pressure | KN | 253 | 261 | 269 | 278 | 285 | 295 | 303 | 316 | 326 | 341 | 351 | 362 | 372 | |
Total power | KW | 91 | 93 | 101 | |||||||||||
Recommend rail | QU100 | ||||||||||||||
Power supply | AC 380V 50HZ |
150t technical parameter | |||||||
Lifting capacity | Main hook | t | 150 | ||||
Aux. hook | 32 | ||||||
Span | m | 22 | 25 | 28 | 31 | 34 | |
Lifting height | Main hook | 20 | |||||
Aux. hook | 20 | ||||||
Working duty | A5/A6 | ||||||
Speed | Main hook | m/min | 0.27~2.7/0.4~4.70 | ||||
Aux. hook | 0.72~7.2 | ||||||
Cross travel | 2.6~26 | ||||||
Long travel | 4.6~46 | ||||||
Hook approach dimension | L1 | mm | 1022 | ||||
L2 | 2092 | ||||||
L | 1450 | ||||||
h | 490 | 390 | |||||
h1 | 360 | ||||||
Main dimension | Ho | mm | 500 | ||||
H1 | 340 | 540 | 740 | 940 | |||
H2 | 2760 | 2960 | 3160 | 3360 | |||
H3 | 1490 | 1590 | |||||
H4 | 3437 | 3537 | |||||
K | 3500 | ||||||
W | 7500 | ||||||
B | 9532 | ||||||
B2 | 1436 | ||||||
B3 | 596 | ||||||
b | 264 | ||||||
Max. wheel pressure | KN | 531.9 | 544.8 | 544.7 | 546.2 | 547.9 | |
Total power | KW | 143 | 151 | ||||
Recommend rail | QU120 | ||||||
Power supply | AC 380V 50HZ |

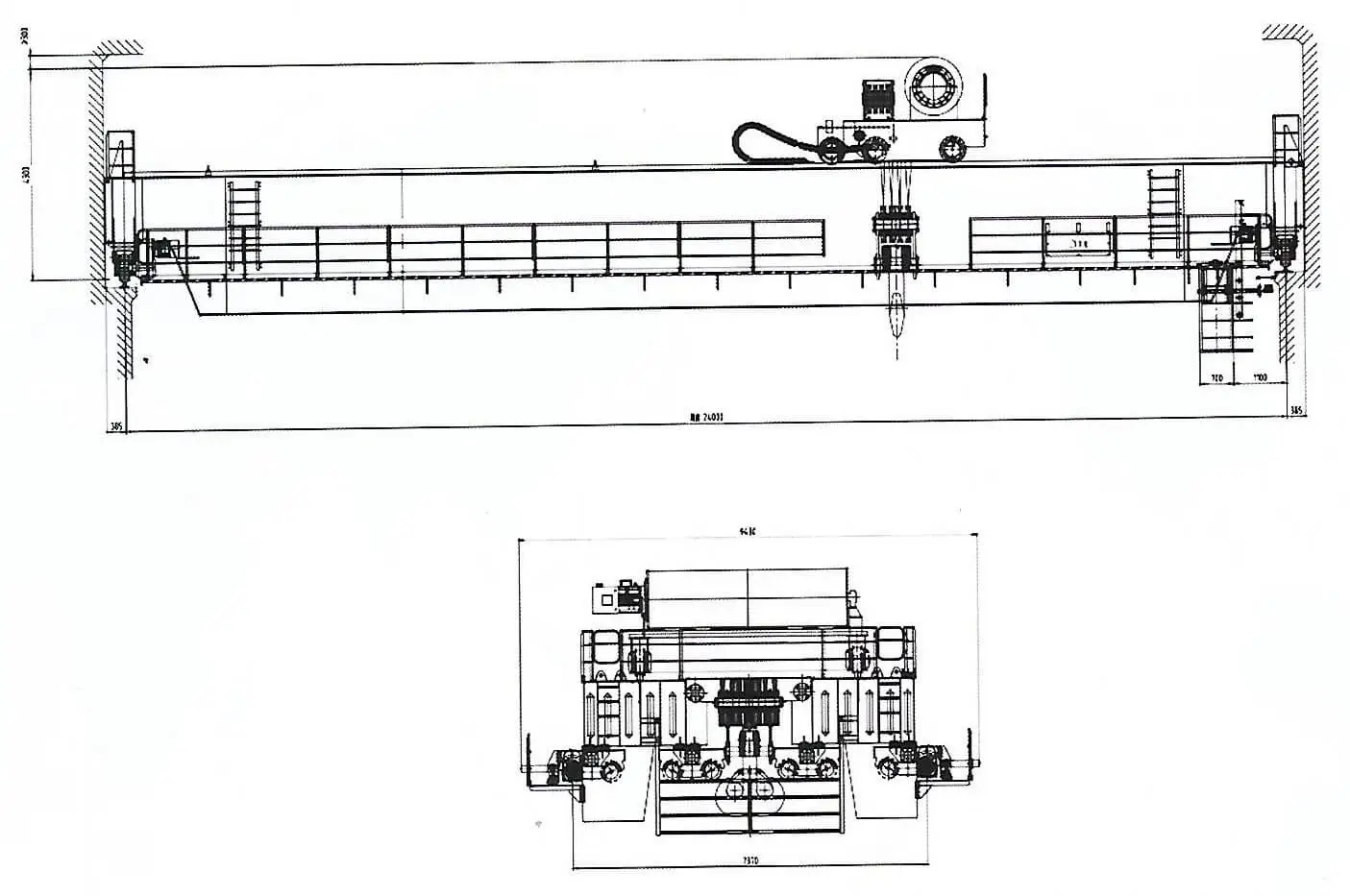

200t technical parameter | ||||||||||
Lifting capacity | Span | Lifting height | Total weight | Max. wheel pressure | Lifting speed | Cross travel speed | Long travel speed | Total power | Power supply | Working duty |
t | m | m | Total weight | KN | m/min | m/min | m/min | Kw | ||
200 | 24 | 20 | 122 | 310 | 0.3~3 | 2~20 | 3.2~32 | 190 | AC 380V 50HZ | A5/A6 |

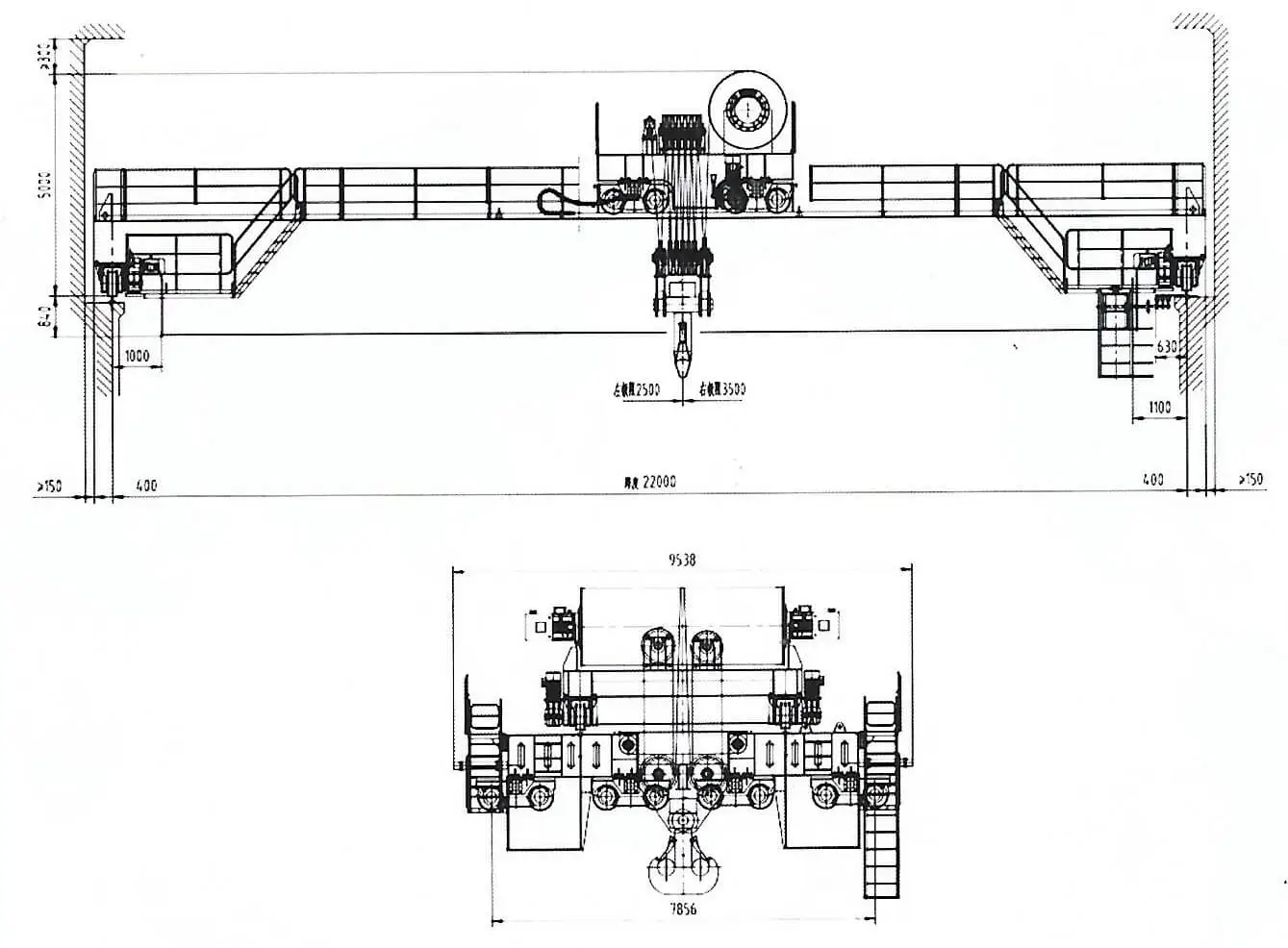

320t technical parameter | ||||||||||
Lifting capacity | Span | Lifting height | Total weight | Max. wheel pressure | Lifting speed | Cross travel speed | Long travel speed | Total power | Power supply | Working duty |
t | m | m | Total weight | KN | m/min | m/min | m/min | Kw | ||
320 | 22 | 20 | 136 | 450 | 0.37~3.7 | 2.5~25 | 3.5~35 | 230 | AC 380V 50HZ | A5/A6 |

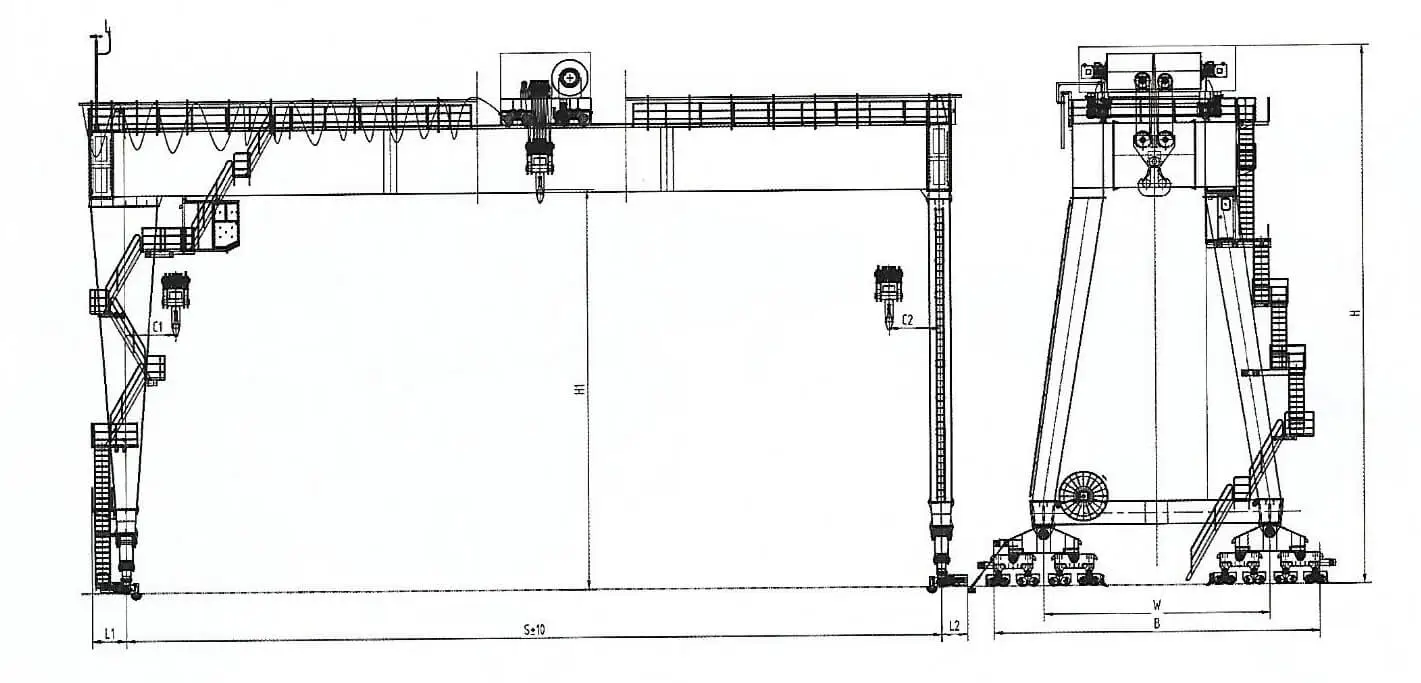

6. Planetary Drive Gantry Crane Performance Parameter Table |

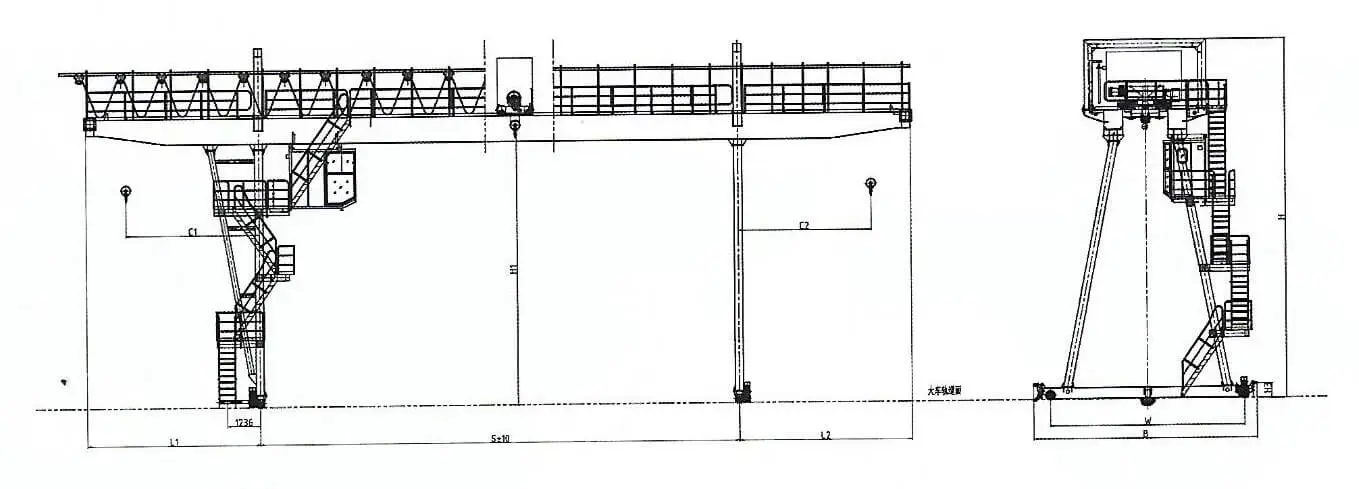

5t-10t technical parameter | ||||||||||||
Lifting capacity | Main hook | t | 5 | 10 | ||||||||
Aux. hook | - | - | ||||||||||
Span | m | 18 | 22 | 26 | 30 | 35 | 18 | 22 | 26 | 30 | 35 | |
Lifting height | Main hook | 10 | 12 | 10 | 12 | |||||||
Aux. hook | - | - | ||||||||||
Working duty | A5/A6 | A5/A6 | ||||||||||
Speed | Main hook | m/min | 1.2~12 | 0.6~6.0 | ||||||||
Aux. hook | - | - | ||||||||||
Cross travel | 3.0~30 | 3.0~30 | ||||||||||
Long travel | 4.8~48 | 5.5~55 | ||||||||||
Hook approach dimension | L1 | mm | 6500 | 9000 | 6500 | 9000 | ||||||
L2 | 6500 | 9000 | 6500 | 9000 | ||||||||
L | - | - | ||||||||||
C1 | 5000 | 7500 | 5000 | 7500 | ||||||||
C2 | 5000 | 7500 | 5000 | 7500 | ||||||||
Main dimension | H | mm | 12400 | 12500 | 12500 | 12560 | 14750 | 13400 | 13500 | 13550 | 13560 | 15750 |
H1 | 10000 | 12000 | 10000 | 12000 | ||||||||
H2 | - | - | ||||||||||
H3 | 450 | 540 | ||||||||||
B | 7404 | 9150 | 8404 | 9150 | ||||||||
W | 6303 | 7900 | 7300 | 7900 | ||||||||
Max. wheel pressure | KN | 108 | 110 | 112 | 126 | 135 | 137 | 146 | 155 | 165 | 175 | |
Total power | KW | 17.74 | 19.74 | 19.74 | 22.74 | |||||||
Recommend rail | 43Kg/m | |||||||||||
Power supply | AC 380V 50HZ |

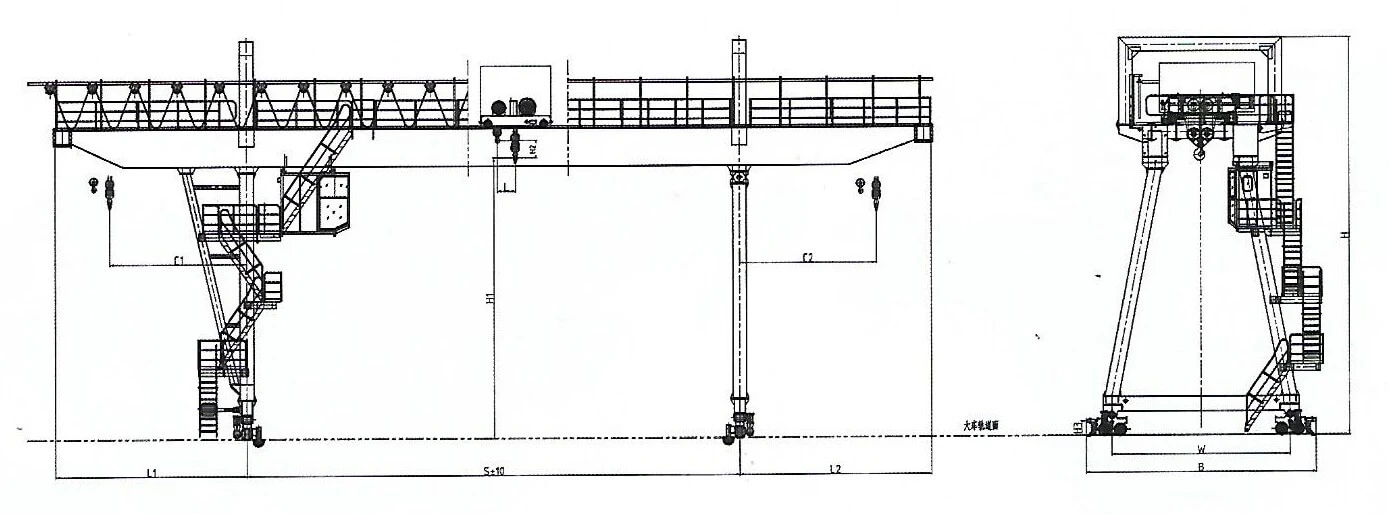

20t-32t technical parameter | ||||||||||||
Lifting capacity | Main hook | t | 20 | 32 | ||||||||
Aux. hook | 5 | 5 | ||||||||||
Span | m | 18 | 22 | 26 | 30 | 35 | 18 | 22 | 26 | 30 | 35 | |
Lifting height | Main hook | 10 | 12 | 10 | 12 | |||||||
Aux. hook | 10 | 12 | 10 | 12 | ||||||||
Working duty | A5/A6 | A5/A6 | ||||||||||
Speed | Main hook | m/min | 1.2~12 | 1.2~12 | ||||||||
Aux. hook | 3.5~35 | 3.5~35 | ||||||||||
Cross travel | 3.2~32 | 3.2~32 | ||||||||||
Long travel | 4.8~48 | 5.5~55 | ||||||||||
Hook approach dimension | L1 | mm | 7500 | 10000 | 7000 | 9500 | ||||||
L2 | 7500 | 10000 | 7000 | 9500 | ||||||||
L | 594 | 657 | ||||||||||
C1 | 5000 | 7500 | 5000 | 7500 | ||||||||
C2 | 5000 | 7500 | 5000 | 7500 | ||||||||
Main dimension | H | mm | 13627 | 13727 | 13847 | 15726 | 15827 | 14420 | 14520 | 14620 | 16820 | 16920 |
H1 | 10000 | 12000 | 10000 | 12000 | ||||||||
H2 | 518 | 569 | ||||||||||
H3 | 550 | 520 | ||||||||||
B | 9204 | 9704 | 8396 | 9196 | ||||||||
W | 8000 | 6500 | 6500 | 7200 | ||||||||
Max. wheel pressure | KN | 235 | 240 | 245 | 265 | 275 | 188 | 191 | 195 | 225 | 231 | |
Total power | KW | 46.2 | 50.2 | 75 | 68.5 | |||||||
Recommend rail | 43Kg/m | QU70 | ||||||||||
Power supply | AC 380V 50HZ |

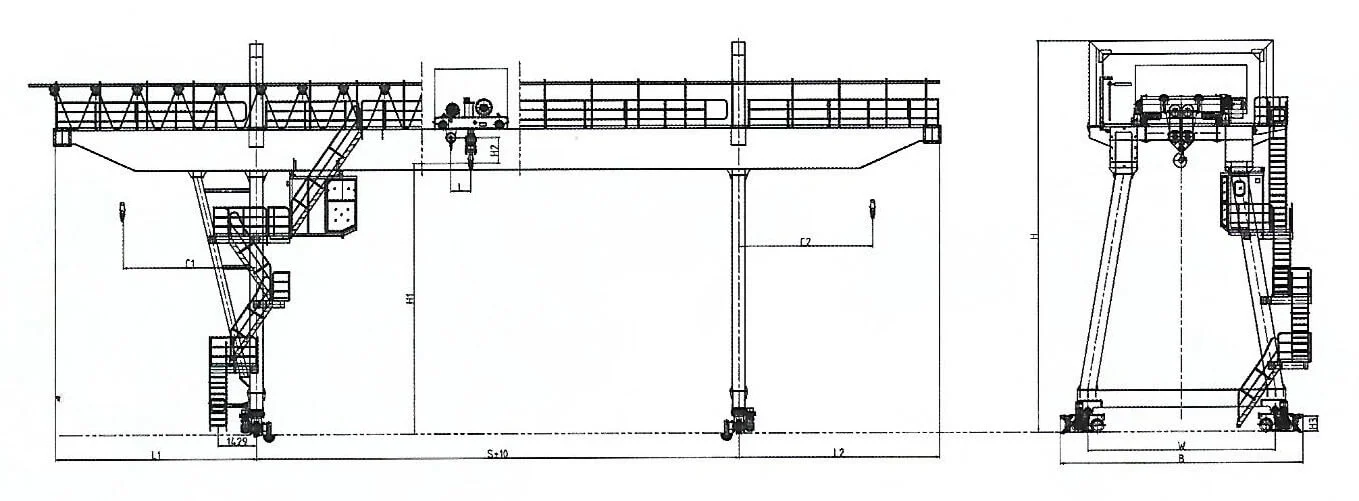

50t-75t technical parameter | ||||||||||||
Lifting capacity | Main hook | t | 50 | 75 | ||||||||
Aux. hook | 10 | 20 | ||||||||||
Span | m | 18 | 22 | 26 | 30 | 35 | 18 | 22 | 26 | 30 | 35 | |
Lifting height | Main hook | 10 | 12 | 10 | 12 | |||||||
Aux. hook | 10 | 12 | 10 | 12 | ||||||||
Working duty | A5/A6 | A5/A6 | ||||||||||
Speed | Main hook | m/min | 0.32~3.2/0.48~4.8 | 0.31~3.1/0.47~4.7 | ||||||||
Aux. hook | 0.6~6.0 | 0.6~6.0 | ||||||||||
Cross travel | 3.2~32 | 3.0~30 | ||||||||||
Long travel | 3.1~31 | 3.2~32 | ||||||||||
Hook approach dimension | L1 | mm | 7500 | 10000 | 8000 | 10500 | ||||||
L2 | 7500 | 10000 | 8000 | 10500 | ||||||||
L | 651 | 1150 | ||||||||||
C1 | 5000 | 7500 | 5000 | 7500 | ||||||||
C2 | 5000 | 7500 | 5000 | 7500 | ||||||||
Main dimension | H | mm | 11482 | 14582 | 14682 | 14684 | 16684 | 17254 | 17354 | 17454 | 17458 | 17462 |
H1 | 10000 | 12000 | 10000 | 12000 | ||||||||
H2 | 600 | 460 | ||||||||||
H3 | 550 | 7700 | ||||||||||
B | 7000 | 7500 | 7700 | |||||||||
W | 9060 | 9560 | 11408 | |||||||||
Max. wheel pressure | KN | 271 | 273 | 275 | 303 | 307 | 279 | 280 | 281 | 298 | 299 | |
Total power | KW | 82.4 | 90.4 | 134.5 | ||||||||
Recommend rail | QU80 | QU80 | ||||||||||
Power supply | AC 380V 50HZ |

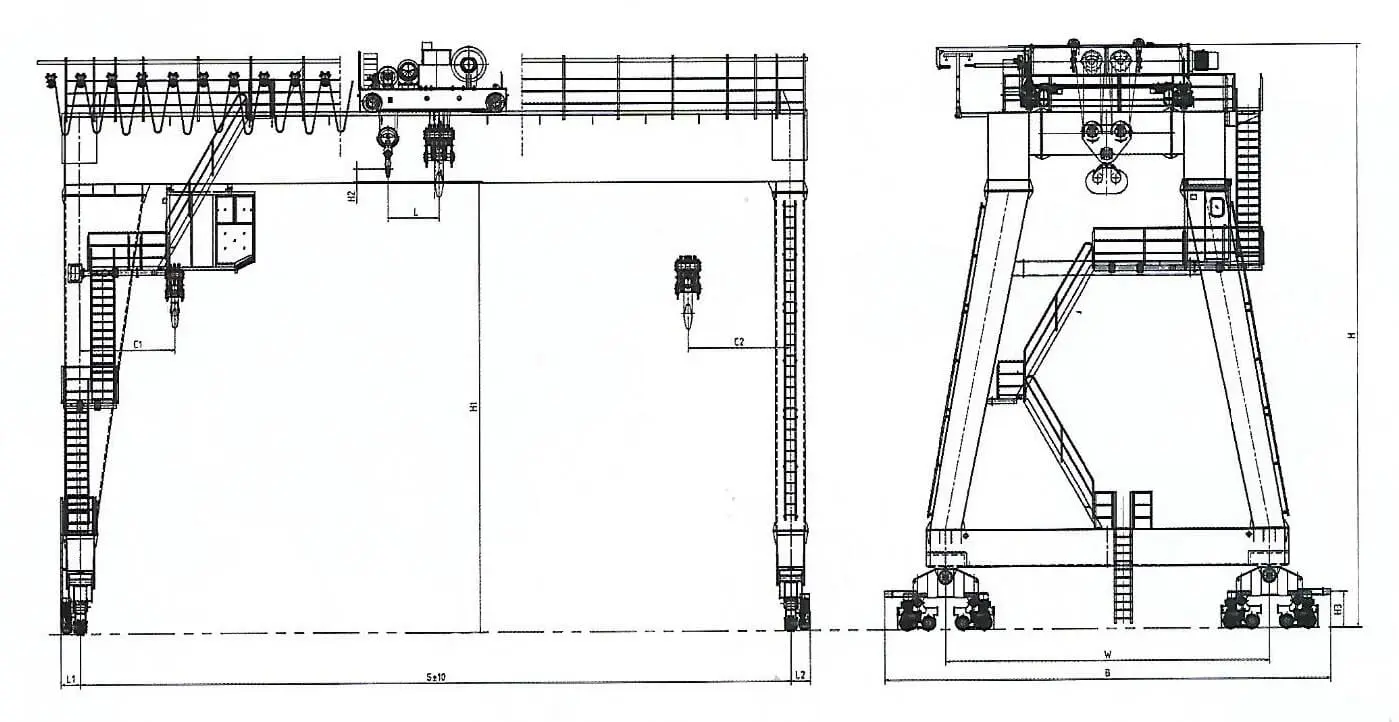

150t technical parameter | |||
Lifting capacity | Main hook | t | 150 |
Aux. hook | 32 | ||
Span | m | 20 | |
Lifting height | Main hook | 13 | |
Aux. hook | 13 | ||
Working duty | A5/A6 | ||
Speed | Main hook | m/min | 0.27~2.7/0.4~4.0 |
Aux. hook | 0.72~7.2 | ||
Cross travel | 2.6~26 | ||
