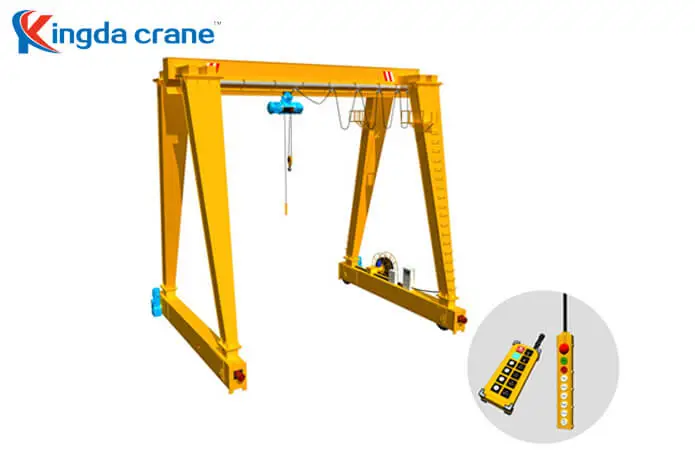

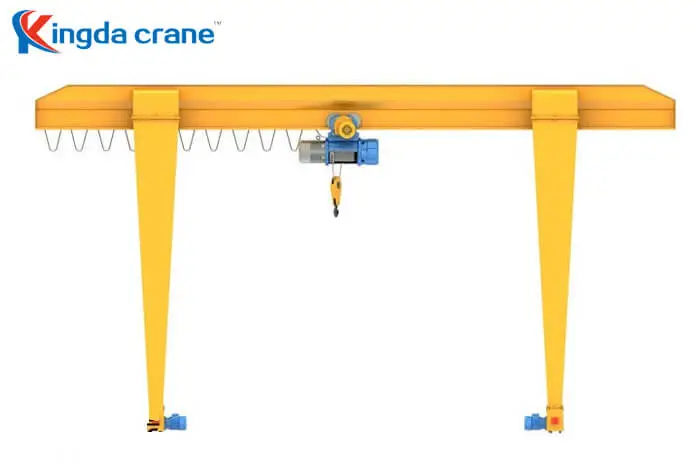

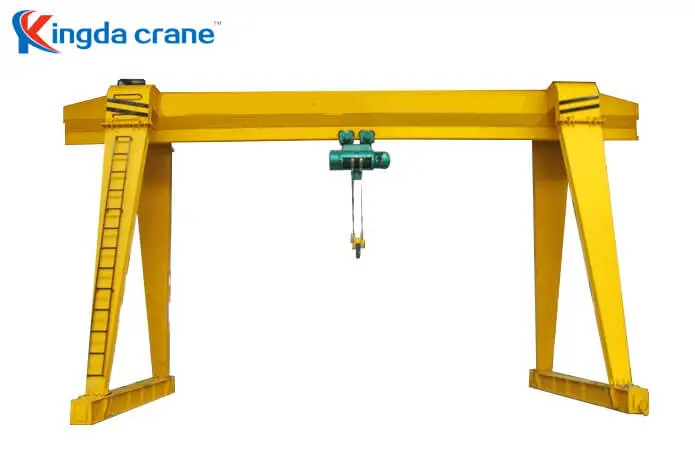

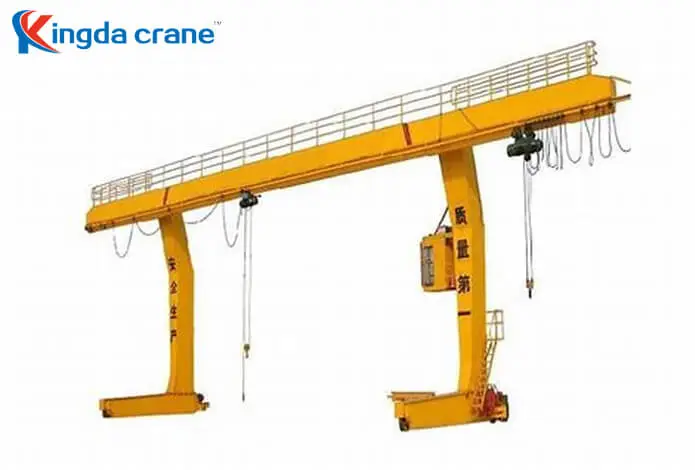

Box Weld Single Girder Gantry Crane

Product description

Box weld single girder gantry crane is box weld structure, can be equipped with single speed and double speed electric hoist. It is a tracking light duty crane, lifting capacity covers 5-20T, span covers 12-30M, working temperature: -20°C-40°C.
The crane is light dead weight strong wind resistance, simple structure, easy installation and maintenance.
This crane is regular usage crane, widely used in open ground and warehouse to load and unload material. There are three control mode: cabin, wireless remote and pendant

Lifting capacity: 5-20T

Electric hoist: Trolley/crab

Working class: A3

Working environment: Railway station, ports, warehouse, factory, ship yard and freight yard, factory

Working temperature: -10°C~40°C

Control mode: Cabin/wireless remote/pendant control

TECHNICAL PARAMETERS

Lifting weight			t	5	10	16	20
Span			m	24	30	30	30
Lifting height			m	6/9	6/9	6/9	6/9
Long travel	speed	Ground	m/min	20	20	20	20
	speed	Cabin	m/min	30	30	30	30
	motor	Ground		YSE90L-4/1.5*2	YZR132M1-6/2.5*2	YZR160M1-6/6.3*2	YZR160M2-6/8.5*2
	motor	Cabin		ZDR112L1-4/2.1*2	YZR132M1-6/2.5*2	YZR160M1-6/6.3*2	YZR160M2-6/8.5*2
	reducer			LD driving	ZSC60	ZSC600	ZSC600
	wheel diameter		mm	Φ270	Φ500	Φ600	Φ600
Electric hoist	Type			single/double speed	single/double speed	single/double speed	single/double speed
	lifting speed		m/min	0.8/8	0.8/8	3.5	3.5
	cross travel speed		m/min	20	20	20	20
	motor	lifting		ZD1 41-4/4.5	ZD1 41-4/7.5	ZD151-4/13	ZD152-4/18.5
	motor	cross travel		ZDY12-4/0.4	ZDY121-4/0.8	ZDY121-4/0.8*2	ZDY121-4/0.8*4
Working class				A3	A3	A3	A3
Recommended rail				P24/38	P38	P43	P50
Power source			380V-3phase-50Hz
Crane weight		Ground	kg	13931		32758	39170
Crane weight		cabin	kg	14281	25500	33208	40170
Max wheel pressure			kn	54	96	190	130

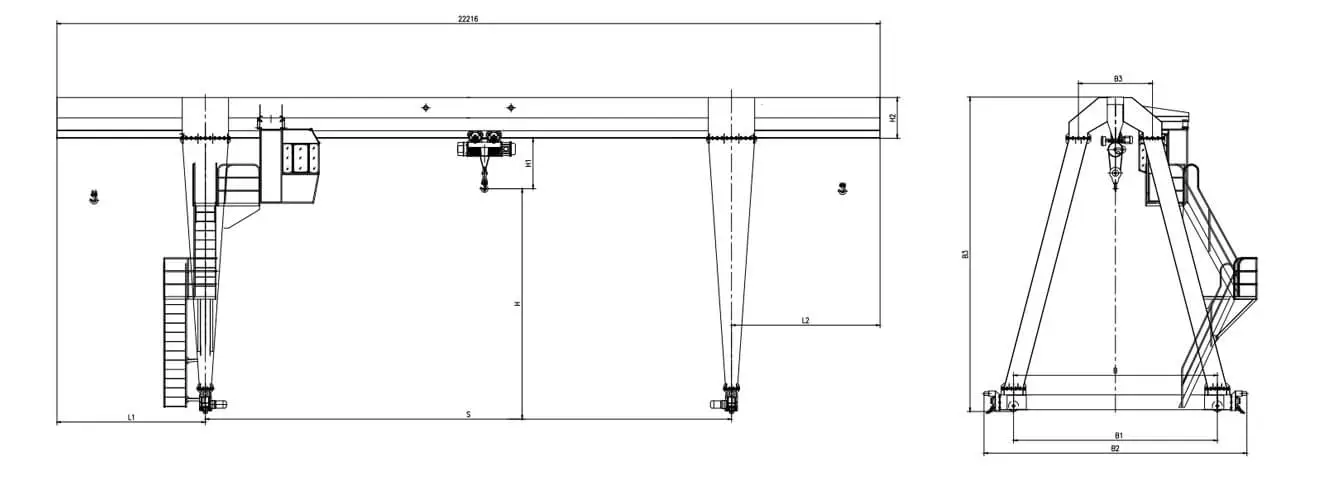

Basic dimension		L1	mm	5000	7500	6000	7000
		L2	mm	5000	7500	6000	7000
		H	mm				9000
		H1	mm	960	1160	2300	2725
		H2	mm	900	1300	1600	2200
		B	mm	6500	6500	7500	7500
		B1	mm	7000	6500/7500	8500	8500
		B2	mm	7500	7100/8100	9200	9200
		B3	mm	1500	1500	1700	1700
