Trussed Structure Single Girder Gantry Crane

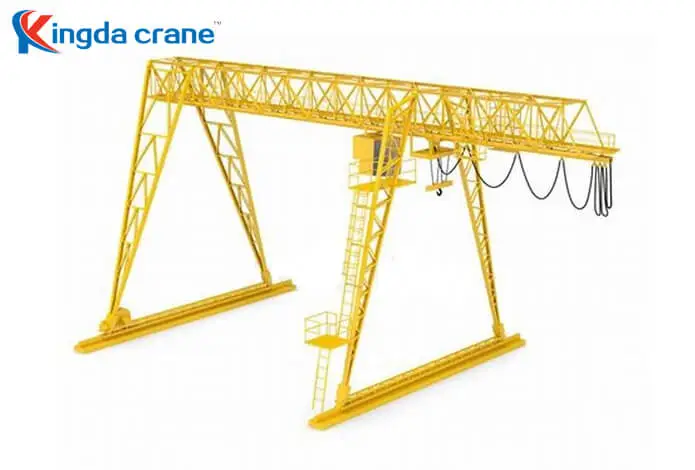

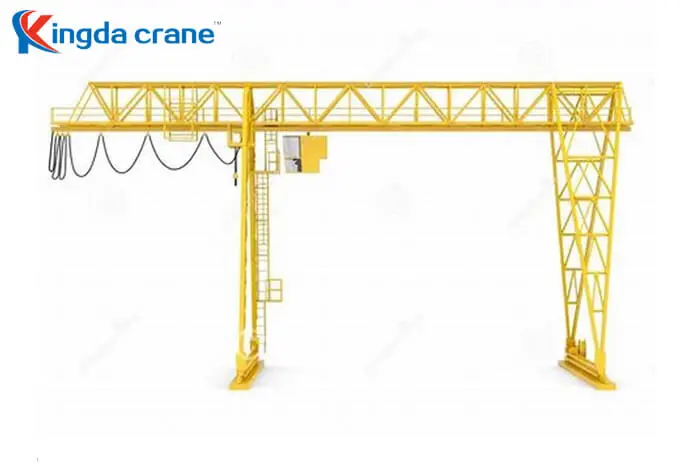

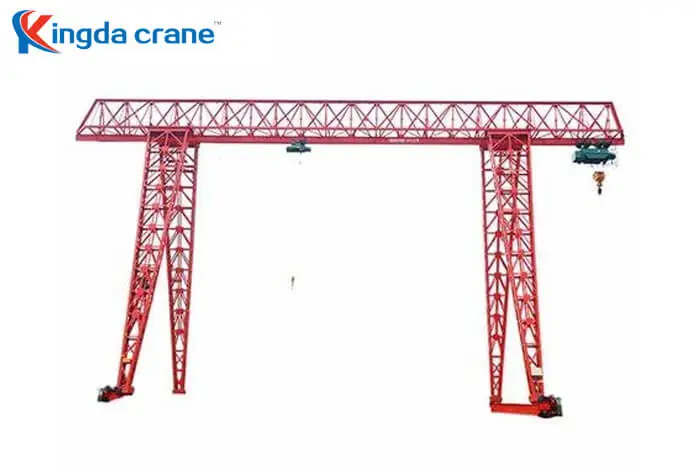

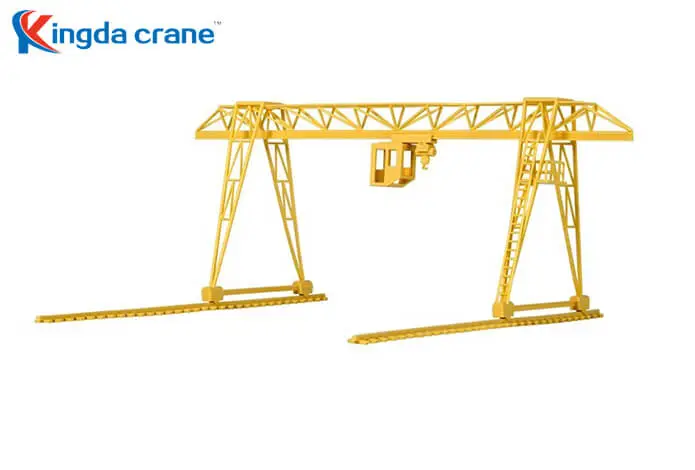

Product description

Trussed structure single girder gantry crane is trussed structure, can be equipped with single speed and double speed electric hoist. It is a tracking light duty crane, lifting capacity covers 5-20T, span covers 12-30M, working temperature: -20°C-40°C. The trussed structure is light dead weight strong wind resistance, simple structure, easy installation and maintenance. This crane is regular usage crane, widely used in open ground and warehouse to load and unload material. There are three control mode: cabin, wireless remote and pendant

Lifting capacity: 5-20T

Electric hoist: Trolley/crab

Working class: A3

Working environment: Railway station, ports, warehouse, factory, ship yard and freight yard, factory

Working temperature: -20°C~40°C

Control mode: Cabin/wireless remote/pendant control

TECHNICAL PARAMETERS

Lifting weight			t	5	10	16	20
Span			m	24	30	30	30
Lifting height			m	6/9	6/9	6/9	6/9
Long travel	speed	Ground	m/min	20	20	20	20
	speed	Cabin	m/min	30	30	30	30
	motor	Ground		YSE90L-4/0.8*2	YSE90L-4/1.5*2	YZR160M1-6/6.3*2	YZR160M2-6/8.5*2
	motor	Cabin		ZDR112L1-4/1.5*2	YZR132M2-6/4*2	YZR160M1-6/6.3*2	YZR160M2-6/8.5*2
	reducer			LD driving	ZSC60	ZSC600	ZSC600
	wheel diameter		mm	Φ270	Φ600	Φ600	Φ600
Electric hoist	Type			single/double speed	single/double speed	single/double speed	single/double speed
	lifting speed		m/min	0.8/8	0.7/7	3.5	3.5
	cross travel speed		m/min	20	20	20	20
	motor	lifting		ZD1 41-0.8/7.5	ZDS1 1.5/13	ZD151-4/13	ZD152-4/18.5
	motor	cross travel		ZDY21-4/0.8	ZDY121-4/0.8*2	ZDY121-4/0.8*2	ZDY121-4/0.8*4
Working class				A3	A3	A3	A3
Recommended rail				P24	P38	P43	P43
Power source
Crane weight		Ground	kg	13931	32700	32758	39875
Crane weight		cabin	kg	14281	33200	33208	40553
Max wheel pressure			kn	54	149	190	236

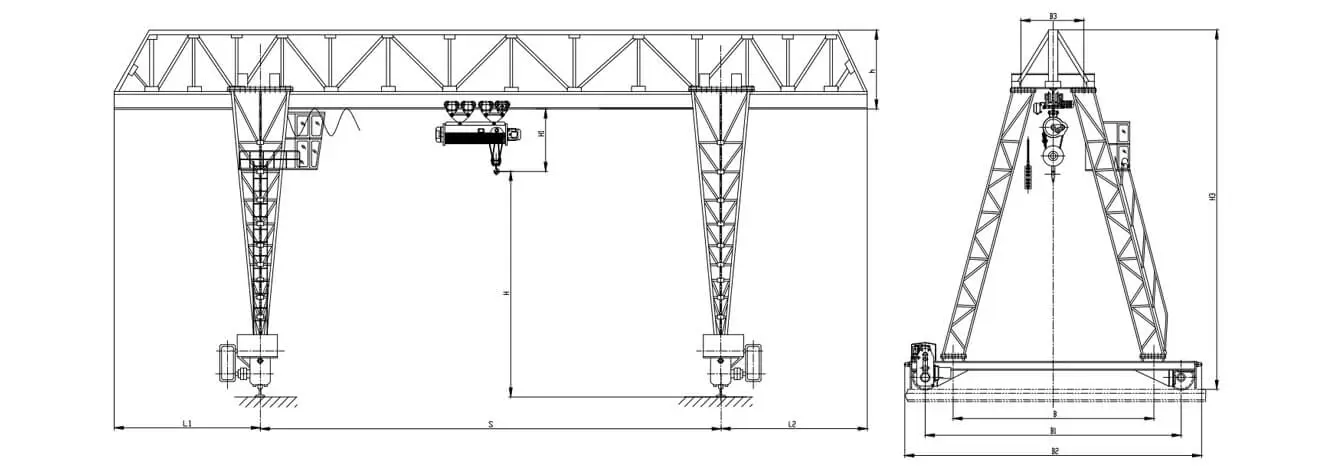

Basic dimension		L1	mm	5000	7500	6000	7500
		L2	mm	5000	7500	6000	7500
		H	mm				6000/9000
		H1	mm	1120	1350	2300	1825
		H2	mm	1500	1900	2500	2400
		B	mm	4500/5900	5500/6500	6500/7500	6500/7500
		B1	mm	5200/6600	6500/7500	7500/8500	7500/8500
		B2	mm	5600/7000	7100/8100	8000/9200	8000/9200
		B3	mm	1500	1600	1700	1700
