| Lifting capapcity(T) | 3 | 5 | |
| span(m) | 22.5 | 22.5 | |
| lifting height(m) | 18 | 18 | |
| Density t/m3 | 1 | ≤1 | |
| Working class | A3 | A3 | |
| Speed m/min | lifting | 16 | 16 |
| cross travel | 20/30 | 20/30 | |
| long travel | 75 | 75 | |

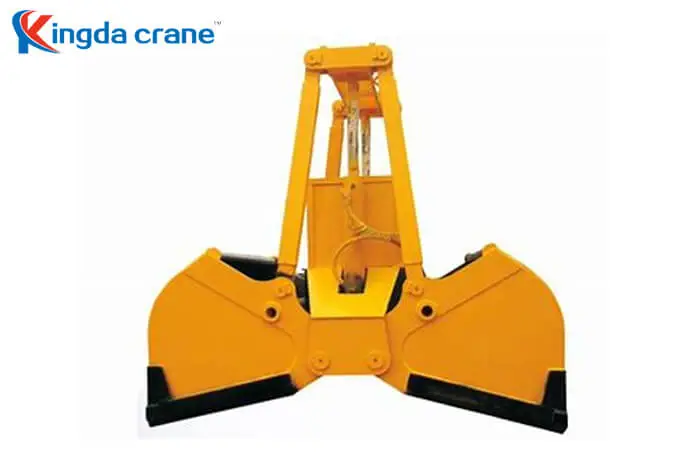

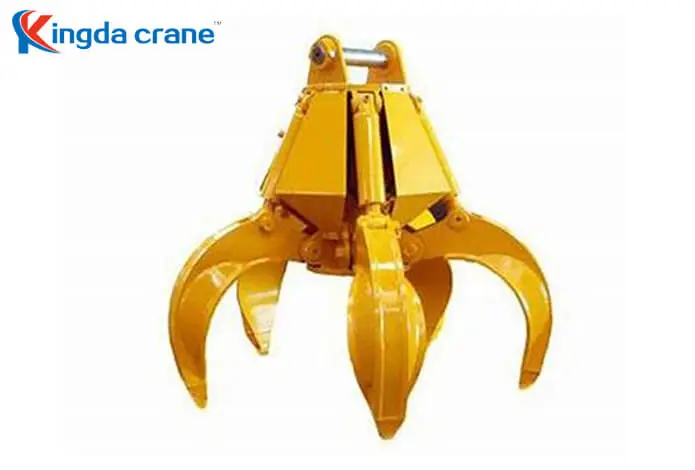

| Grab | model | 201 | 301 |
| dead weight (T) | 2.3 | 3.1 | |
| Volume（m3) | 0.75 | 1.5 | |
| Total weight(cabin control) | 7.53 | 9.15 | |
| wheel pressure(Kn) | 32.4 | 45 | |
