Position: Home > Products > Overhead Crane

overhead magnet crane

overhead magnet crane

overhead magnet crane

overhead magnet crane

overhead magnet crane

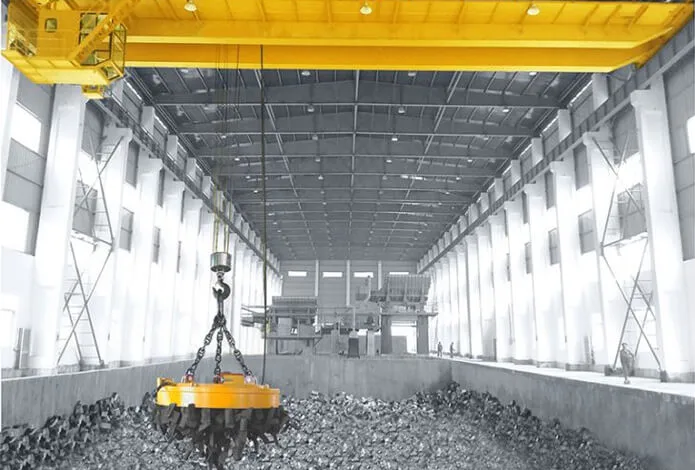

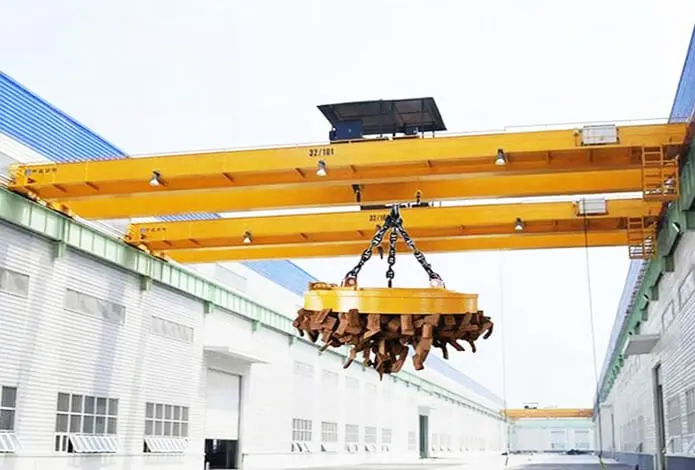

Overhead Magnet Crane

Lifting capacity: 5-50T

Lifting mechanism: Trolley mechanism

Working class: A6

Working environment: Scarp yard/metallurgical industry/ smelting workshop/ iron and steel plant

Working temperature: -10°C~70°C

Control mode: Wireless remote/cabin/pendant

Overhead magnet cane be equipped with electromagnet to handle steel scrap, scrap metal, waste iron, iron slab and iron chips, etc.

Share With:

Product description

TECHNICAL PARAMETERS

Related products

Send Your Inquiry

Product description

overhead magnet cranet is the same structure as general overhead crane, organized by box-weld main girder/beam, box-weld end beam, lifting trolley/crab, long travel mechanism and electrical control system and electromagnet. the crane cane be equipped with electromagnet to handle steel scrap, scrap metal, waste iron, iron slab and iron chips, etc. Overhead crane with magnet can be double hook, electromagnet can on main hook, also can be auxiliary hook, depending on customer's requirement. The electromagnet is organized by cable drum, control system and storage battery, can backup 30 minutes when power is off. Lifting capacity includes electromagnet's weight

Lifting capacity: 5-50T

Lifting mechanism: Trolley mechanism

Working class: A6

Working environment: Scarp yard/metallurgical industry/ smelting workshop/ iron and steel plant

Working temperature: -10°C~40°C

Control mode: Wireless remote/cabin/pendant

Back up under power off: 30 min

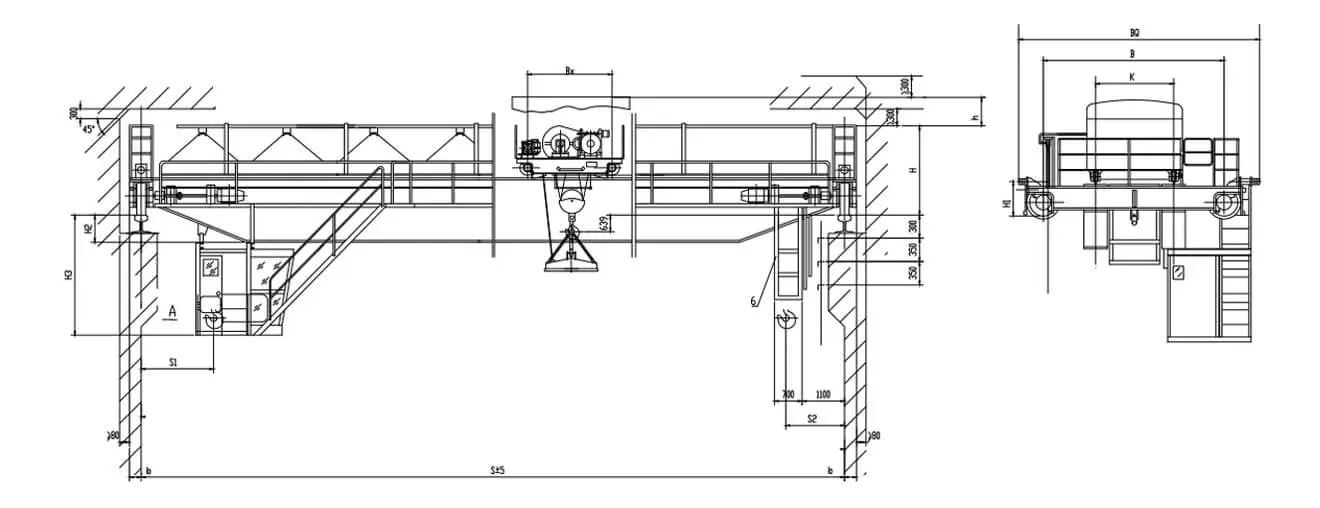

TECHNICAL PARAMETERS

Lifting capacity				t	5	10	20/5 main hook with electromagnet	32/5 auxiliary hook with electromagnet
span				m	31.5	31.5	31.5	31.5
Max lifting height		main hook		m	16	16	12	16
		auxiliary hook					18	18
working class					A6
speed	lifting	main	electromagnet	m/min	15.6	13	13	9.5
		Auxiliary					14.6	15.5
	Cross travel				39.5	43.8	44.6	43.4
	long travel				93.7	86.4	89	75.3
Weight	trolley			Kg	2496	4662	6822	12210
	total weight			Kg	32840	39200	42820	57140
Max wheel pressure				kn	134	173	214	341
Recommended rail					43kg/m
Power source					380-600V 50HZ 3 Phase
electromagnet		Model			MW1-16	MW1-16	MW5-180L	MW5-210L
		Attracting weight		kg	3330	8330	14500	21000
		Dead weight			1670	1670	4230	7000
		Diameter		mm	1180	1180	1800	21000

Related products

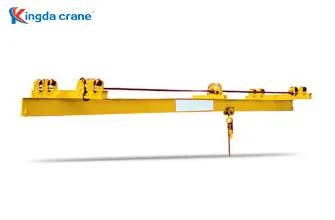

Manual Operation Single Girder Suspension Crane
