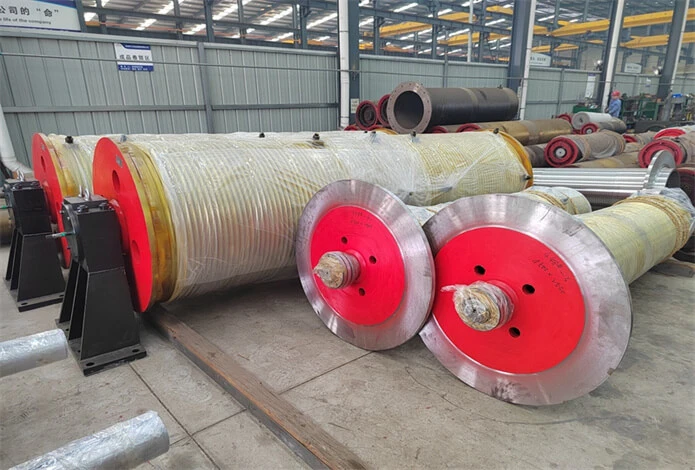

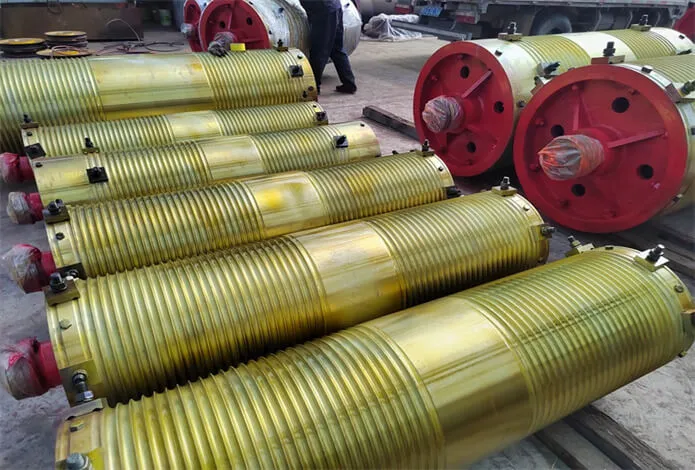

Crane hoist drum Usage: Crane or other engineering machine lifting mechanism to to wind wire rope

Diameter(mm): φ350, φ400, φ500, φ650,φ700,φ800,φ1000
Drum length(mm): 1000, 1500, 2000, 3600, 3500
Lifting capacity(t): 5, 5/10, 16/20, 32, 50, 75, 100/125, 200, 400, 900
Lifting height(m): 15, 22/16, 16/20, 17, 20
Bearing: SKF, FAG, NSK or other customer pointed brand

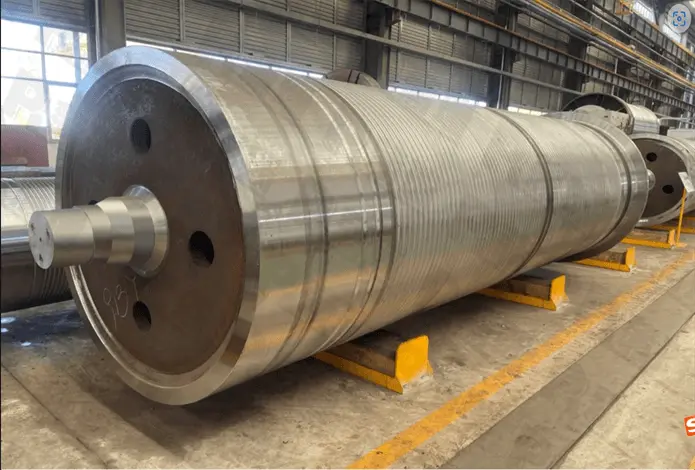

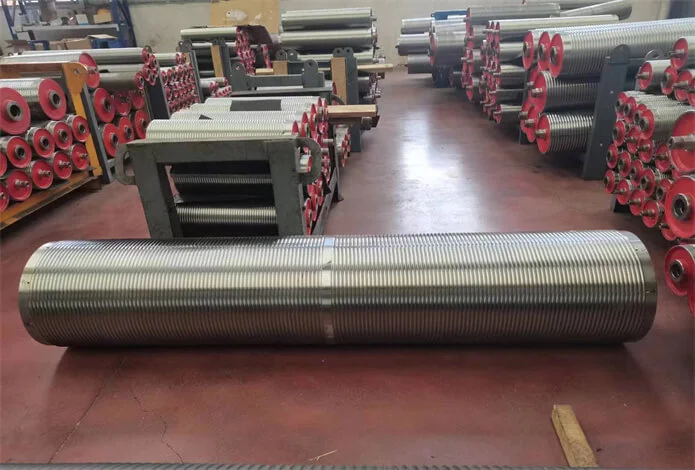

♦  Kingda crane hoist drum use controlled lathe for processing, the rope groove has high smoothness, prolonging service life of wire rope, and reducing material placing deviation;

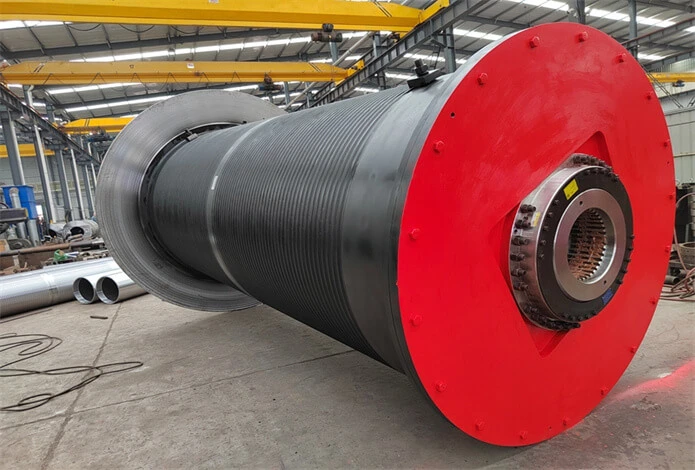

♦  Drum diameter can reach 3 meters, using Q355 material, with uniform wall thickness and strong load-bearing capacity.
♦  Ultrasonic testing for flange and cylinder welds to avoid weld defects.
♦  By annealing treatment, the quality is reliable.

TECHNICAL PARAMETERS

Parameter List for φ300 Drum Block
No.	Part No.	DxL	Type	ds	p	m	D1	L1	L2	L3	B1	B2	b1	b2	I1	I2	H	h	R	m1XZ1	Weight(kg)	Usage
1	T554	φ300X1500	I	11	13	100	308	17.5	100		180	360	120	300	50	30	120	310	30	3x56	342
2	T525	φ300X1200	II	16	18	330	310	17.5	100	78	180	360	120	300	50	30	120	310	30	3x56	331	for grab
3	T489	φ300X1000	I	11	13	38	308	17.5	100		180	360	120	300	50	30	120	310	30	3x56	239
4	T490	φ300X1000	I	12	14	38	308	17.5	100		180	360	120	300	50	30	120	310	30	3x56	239
5	T1020B	φ300X1500	II	11	13	150	308	17.5	100	78	180	360	120	300	50	30	120	310	30	3x56	342
6	T497	φ300X1500	I	11	13	150	308	17.5	100		180	360	120	300	50	30	120	310	30	3x56	333
7	T383G	φ300X1000	II	11	13	38	308	17.5	100	78	180	360	120	300	50	30	120	310	30	3x56	252
8	T423G	φ300X1000	II	12	14	38	308	17.5	100	78	180	360	120	300	50	30	120	310	30	3x56	252
9	T545G	φ300X1200	I	8	11	38	308	17.5	100		180	360	120	300	50	30	120	310	30	3x56	280

Parameter List for φ400 Crane Hoist Drum
No.	Part No.	DxL	Type	ds	p	m	D1	L1	L2	L3	B1	B2	b1	b2	I1	I2	H	h	R	m1XZ1	Weight(kg)	Usage
1	T566	φ400X1800	I	14.5	16	150 50	409	10	100			360	120	300	50	30	210	30	240	4X56	520
2	T514	φ400X1500	II	16	22	250	418	10	140	78	180	360	120	300	50	30	210	30	240	4X56	493
3	T552	φ400X1500	I	11	12.7	150	409	10	100			360	120	300	50	30	210	30	240	4X56	440
4	T549	φ400X1500	II	11	12.7	50	408	10	100	78		360	120	300	50	30	210	30	240	4X56	454
5	T587	φ400X2000	I	14.5	16	250	409	10	100			360	120	300	50	30	210	30	240	4X56	575
6	T593	φ400X2000	II	14.5	16	250	409	10	100	78		360	120	300	50	30	210	30	240	4X56	572
7	T491	φ400X1000	I	14.5	16	48	409	10	100			360	120	300	50	30	210	30	240	4X56	321
8	T1023B	φ400X1500	II	14.5	16	150 50	409	10	100	78		360	120	300	50	30	210	30	240	4X56	454
9	T492	φ400X1500	I	14.5	16	150 50	409	10	100			360	120	300	50	30	210	30	240	4X56	440
10	T1022B	φ400X1000	II	14.5	16	48	409	10	100	78		360	120	300	50	30	210	30	240	4X56	334
11	T415G	φ400X800	II	14.5	16	48	409	10	100	78		360	120	300	50	30	210	30	240	4X56	288
12	T416G	φ400X1200	II	14.5	16	250 50	409	10	100	78		360	120	300	50	30	210	30	240	4X56	382
13	T422G	φ400X1500	II	14.5	16	50	409	10	100	78		360	120	300	50	30	210	30	240	4X56	454
14	T507	φ400X2000	I	14.5	16	150 50	409	10	100			360	120	300	50	30	210	30	240	4X56	574
15	T598	φ400X2500	I	14.5	16	50	409	10	100			360	120	300	50	30	210	30	240	4X56	691
16	T565	φ400X2200	I	14.5	16	150	409	10	100			360	120	300	50	30	210	30	240	4X56	619
17	T607	φ400X2500	I	14.5	16	150	409	10	100			360	120	300	50	30	210	30	240	4X56	694
18	T608	φ400X2500	I	11	12.7	150	408	10	100			360	120	300	50	30	210	30	240	4X56	692
19	T603	φ400X2500	II	13.5	16	150	409	10	100	78		360	120	300	50	30	210	30	240	4X56	717
20	T1023Z	φ400X1500	II	16	22	400	418	10	100	78		360	120	300	50	30	210	30	240	4X56	460

Parameter List for φ500 Crane Hoist Drum
No.	Part No.	DxL	Type	ds	p	m	D1	L1	L2	L3	B1	B2	b1	b2	I1	I2	H	h	R	m1XZ1	Weight(kg)	Usage
1	T535	φ500X3800	I	17.5	20	400	512	45	100		200	410	140	350	60	30	260	30	316	6X56	2000
2	T536	φ500X2000	II	17.5	20	120	512	45	100	96	200	410	140	350	60	30	260	30	316	6X56	785
3	T540	φ500X2200	II	17.5	20	50	512	45	100	96	200	410	140	350	60	30	260	30	316	6X56	1027
4	T541	φ500X2200	II	22	28	300	524	60	133	96	200	410	140	350	60	30	260	30	316	6X56	1167	for grab
5	T568	φ500X2000	II	22	28	500	524	60	133	96	200	410	140	350	60	30	260	30	223	6X56	1077	for grab
6	T613	φ500X2200	I	17.5	20	120	512	45	100		200	410	140	350	60	30	260	30	223	6X56	1017
7	T429G	φ500X1200	II	22	28	70	524	60	85	96	200	410	140	350	60	30	260	30	316	6X56	716	for grab
8	T547	φ500X1800	II	24	28	120	524	60	133	96	200	410	140	350	60	30	260	30	322	6X56	986
9	T548	φ500X1800	II	24	28	300	524	60	133	96	200	410	140	350	60	30	260	30	322	6X56	986
10	T620	φ500X3400	II	16	18	120	512	45	100	96	200	410	140	350	60	30	260	30	303	6X56	1594
11	T639	φ500X2800	I	17.5	20	420	512	45	100		200	410	140	350	60	30	260	30	316	6X56	1260
12	T1024Z	φ500X1500	II	20	26	300	524	60	85	96	200	410	140	350	60	30	260	30	325	6X56	852	for grab
13	T571	φ500X1685	II	17.5	20	105	512	45	100	96	200	410	140	350	60	30	260	30	316	6X56	837
14	T570	φ500X2840	II	17.5	20	180	512	45	100	96	200	410	140	350	60	30	260	30	316	6X56	1249
15	T493	φ500X1500	I	17.5	20	120	512	60	85		200	410	140	350	60	30	260	30	316	6X56	739
16	T1024B	φ500X1500	II	17.5	20	120	512	60	85	96	200	410	140	350	60	30	260	30	316	6X56	753
17	T417G	φ500X1200	II	17.5	20	80	512	45	100	96	200	410	140	350	60	30	260	30	316	6X56	618

Parameter List for φ500 Crane Hoist Drum
No.	Part No.	DxL	Type	ds	p	m	D1	L1	L2	L3	B1	B2	b1	b2	I1	I2	H	h	R	m1XZ1	Weight(kg)	Usage
1	T424G	φ500X1200	II	16	22	250	518	60	85	96	200	410	140	350	60	30	260	30	309	6x56	716	for grab
2	T527	φ500X1485	II	17.5	20	105	512	45	100	96	200	410	140	350	60	30	260	30	316	6x56	742
3	T508	φ500X2000	I	17.5	20	120	512	45	100		200	410	140	350	60	30	260	30	316	6x56	932
4	T509	φ500X1485	I	17.5	20	105	512	45	100		200	410	140	350	60	30	260	30	316	6x56	741
5	T516	φ500X2500	I	17.5	20	120	512	45	145		200	410	140	350	60	30	260	30	316	6x56	1133
6	T473G	φ500X2500	II	17.5	20	120	512	45	100	96	200	410	140	350	60	30	260	30	316	6x56	1142
7	T550	φ500X2500		17.5	20	120 50	512	60	85		200	410	140	350	60	30	260	30	316	6x56	1154
8	T599	φ500X3000	II	17.5	20	220	512	45	100	96	200	410	140	350	60	30	260	30	316	6x56	1365
9	T604	φ500X2500	I	14.5	16	70	509	45	100		200	410	140	350	60	30	260	30	297	6x56	1130
10	T605	φ500X3000	I	14.5	16	90	509	45	100		200	410	140	350	60	30	260	30	297	6x56	1326
11	T461G	φ500X3500	II	17.5	20	150	512	45	100	96	200	410	140	350	60	30	260	30	316	6x56	1700
12	TS555	φ500X1000	II	17.5	20	50	512	45	100	96	200	410	140	350	60	30	260	30	316	6x56	561
13	T556	φ500X1000	I	17.5	20	50	512	45	100		200	410	140	350	60	30	260	30	316	6x56	560
14	T610	φ500X1500	I	14.5	16	120	509	45	100		200	410	140	350	60	30	260	30	297	6x56	7788
15	T385G	φ500X1500	II	17.5	20	120 50	512	45	100	96	200	410	140	350	60	30	260	30	316	6x56	756

Parameter List for φ650 Crane Hoist Drum
No.	Part No.	DxL	Type	ds	p	m	D1	L1	L2	L3	B1	B2	b1	b2	I1	I2	H	h	R	m1XZ1	Weight(kg)	Usage
1	T567	φ650X2500	I	17.5	20	130	664	43	100		230	470	160	400	70	35	360	30	412	8x54	1769
2	T494	φ650X2000	I	21.5	24	150	664	43	100		230	470	160	400	70	35	360	30	412	8x54	1499
3	T1025B	φ650X2000	II	21.5	24	150	664	43	100	99	230	470	160	400	70	35	360	30	412	8x54	1500
4	T583	φ650X1500	I	21.5	24	150	664	43	100		230	470	160	400	70	35	360	30	412	8x54	1499
5	T557	φ650X3200	I	21.5	24	150	664	43	100		230	470	160	400	70	35	360	30	412	8x54	2154
6	T544	φ650X2500	III	21.5	24	150	664	43	100	99	230	470	160	400	70	35	360	30	412	8x54	1777
7	T563	φ650X2500	I	21.5	24	150	664	43	100		230	470	160	400	70	35	360	30	412	8x54	1769
8	T546	φ650X2300	I	21.5	24	150	664	43	100		230	470	160	400	70	35	360	30	412	8x54	1655
9	T562	φ650X3200	III	21.5	24	150	664	43	100	99	230	470	160	400	70	35	360	30	412	8x54	2156
10	T594	φ650X2300	I	21.5	20	120	664	43	100		230	470	160	400	70	35	360	30	412	8x54	1656
11	T567	φ650X4700	I	21.5	28	150	664	43	100		230	470	160	400	70	35	360	30	412	8x54	3223
12	T577	φ650X1500	III	21.5	24	66	664	43	100	99	230	470	160	400	70	35	360	30	412	8x54	1201
13	T572	φ650X1500	III	21.5	24	150	664	43	100	99	230	470	160	400	70	35	360	30	412	8x54	1201
14	T510	φ650X5500	III	21.5	24		664	43	100	99	230	470	160	400	70	35	360	30	412	8x54	6256

Parameter List for φ700 Crane Hoist Drum
No.	Part No.	DxL	Type	ds	p	m	D1	L1	L2	L3	B1	B2	b1	b2	I1	I2	H	h	R	m1XZ1	Weight(kg)	Usage
1	T1025Z	φ700X1860	II	24	32	400	728	43	100	99	230	470	160	400	70	35	360	30	434	8X54	1948	for grab
2	T619	φ700X1860	II	20	28	400	724	43	100	99	230	470	160	400	70	35	360	30	397	8X54	1862	for grab

Parameter List for φ800 Crane Hoist Drum
No.	Part No.	DxL	Type	ds	p	m	D1	L1	L2	L3	B1	B2	b1	b2	I1	I2	H	h	R	m1XZ1	Weight(kg)	Usage
1	T538	φ800X2500	I	24	28	250	816	87.5	100		250	530	180	450	70	35	420	35	478	10x48
2	T495	φ800X2000	I	24	28	350	816	87.5	100		250	530	180	450	70	35	420	35	478	10x48
3	T1027B	φ800X2000	II	24	28	350	816	87.5	100	99	250	530	180	450	70	35	420	35	478	10x48
4	T453G	φ800X3800	III	30	32	230	818	87.5	100	99	250	530	180	450	70	35	420	35	478	10x48
5	T600	φ800X2000	III	32.5	44	400	840	87.5	100	99	250	530	180	450	70	35	420	35	478	10x48	for grab
6	T462G	φ800X4200	III	30	32	370	818	87.5	100	99	250	530	180	450	70	35	420	35	477	10x48C
7	T618	φ800X4500	III	27	30	300	818	87.5	100	99	250	530	180	450	70	35	420	35	482	8x54
8	T625	φ800X2500	I	22.5	24	120	814	87.5	100		250	530	180	450	70	35	420	35	456.5	10x48
9	T638	φ800X3000	III	24	28	350	816	87.5	100	99	250	530	180	450	70	35	420	35	478	10x48
10	T1027Z	φ800X1800	II	27	36	400	832	87.5	100	99	250	530	180	450	70	35	420	35	486	10x48	for grab
11	T584	φ800X2000	III	22.5	24	80	816	87.5	100	99	250	530	180	450	70	35	420	35	478	8x54
12	T564	φ800X3200	I	22.5	24	150	814	87.5	100		250	530	180	450	70	35	420	35	478	8x54
13	T575	φ800X3600	I	24	28	200	816	87.5	100		250	530	180	450	70	35	420	35	478	10x48

Parameter List for φ1000 Crane Hoist Drum
No.	Part No.	DxL	Type	ds	p	m	D1	L1	L2	L3	B1	B2	b1	b2	I1	I2	H	h	R	m1XZ1	Weight(kg)	Usage
1	T524	φ1000X3000	I	24	28	230	1016	87.5	100		320	550	200	460	70	70	460	30	578	10x48	3479
2	T533	φ1000X2500	I	24	28	280	1016	87.5	100		250	530	180	450	70	35	420	35	578	10x48	30449
3	T553	φ1000X2500	III	24	28	280	1016	87.5	100	158	250	530	180	450	70	35	420	35	578	10x48	3083
4	T573	φ1000X2000	I	24	28	100	1016	87.5	100		250	530	180	450	70	35	420	35	578	10x48	2589
5	T447G	φ1000X2000	III	24	28	150	1016	87.5	100	158	250	530	180	450	70	35	420	35	580	10x48	4057
6	T578	φ1000X2000		30	32	100	1018	40	300	420	250	800	150	670	120	50	500	50	589	10x48	4748
7	T646	φ1000X3700	III	17.5	20		1012	87.5	100	158	250	530	180	450	70	35	420	35	558	10x48	4707
8	T632	φ1000X3500	III	32	36	300	1020	95	187.5	159.5	270	570	180	500	35	45	530	45	595	10x48	4293
