grab for port gantry crane and ship unloader-kingda crane

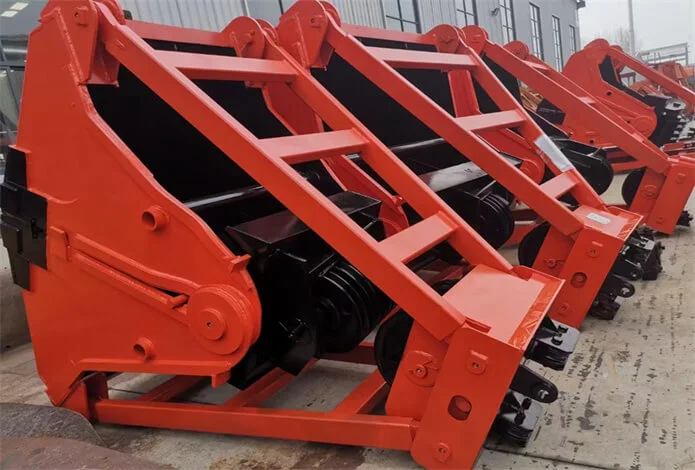

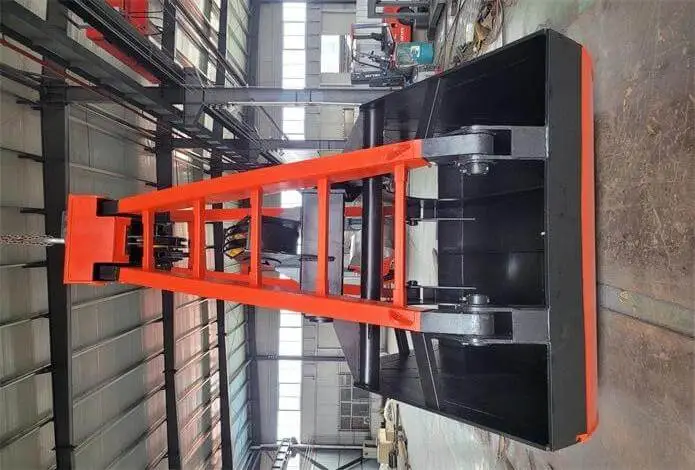

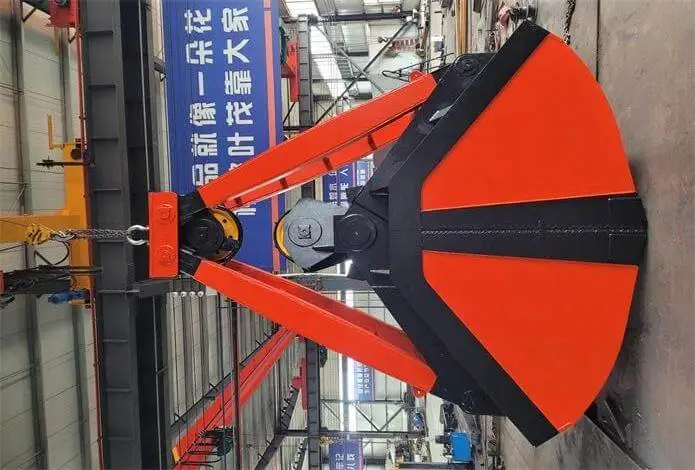

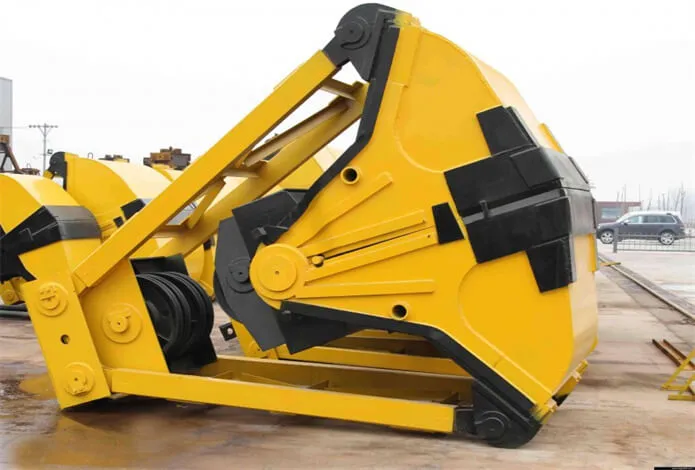

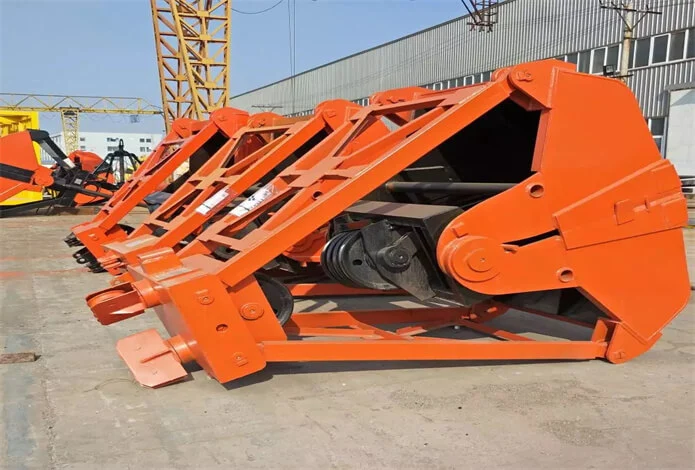

Product description

Grab is suitable for port gantry crane and ship unloader.

Crane mode: port gantry crane, ship unloader
Volume range: 1.6-45 m³
Crane maximum lifting capacity: 63t

♦  Through beam structure is short
♦  Reduced self weight
♦  Closed welded supporting structure
♦  Independent force transmission
♦  Good stability and lateral bending resistance
♦  Liner bushing of every jointing point adopts high-quality bearing steel
♦  Grab service life is extended by 3-4 times.
♦  The ratio of material weight and grab self weight reaches 1.5-1.9, Strong grasping ability
♦ Good sealed, can work under water

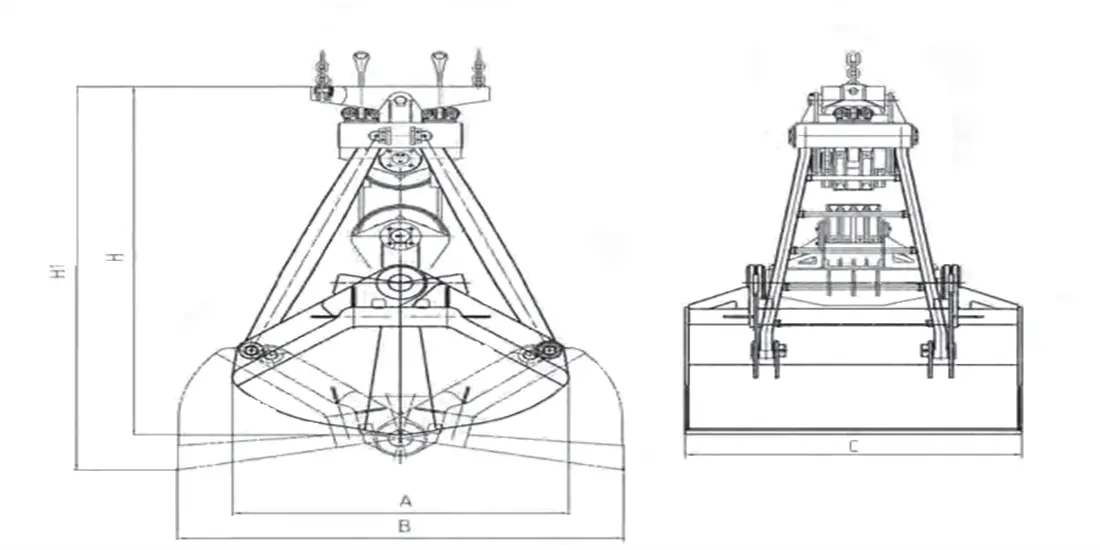

TECHNICAL PARAMETERS

No.	Mode	Crane lifting capacity t	Volume m3	Self-weight t	Material density t/m3	pulley magnification	Wire rope diameter mm	Pulley diameter mm	Grab height (closing) H mm	Grab height (opening) H1 mm	Grab length (closing) B mm	Grab length (opening) B mm	Grab width C MM
1	UP0536	5	3.6	2.20	0.8	3	φ16	φ315	2630	2960	2150	2920	2190
2	UP0860	8	6	3.20	0.8	3	φ20	φ400	3180	3610	2560	3455	2590
3	UP1077	10	7.7	3.80	0.8	3	φ22	φ450	3450	3940	2770	3740	2805
4	UP1612	16	12.5	6.10	0.8	3	φ26	φ560	4060	4660	3250	4390	3290
5	UP2014	20	14	8.70	0.8	3	φ28	φ630	4430	5040	3420	4590	3440
6	UP2519	25	19	9.80	0.8	3	φ32	φ630	4670	5400	3760	5060	3790
7	UP3222	32	22	14.00	0.8	3	φ36	φ710	5040	5760	3980	5340	4000
8	UP4028	40	28	17.60	0.8	3	φ40	φ800	5510	6330	4280	5720	4290
9	UP5035	50	35	21.50	0.8	3	φ44	φ900	6040	6890	4630	6220	4660
10	UP6345	63	45	27.00	0.8	3	φ48	φ1000	6560	7520	5000	6710	5030
11	UP0530	5	3	2.10	1.0	3	φ16	φ315	2550	2860	2030	2750	2060
12	UP0849	8	4.9	3.10	1.0	3	φ20	φ400	3060	3460	2400	3210	2405
13	UP1063	10	6.3	3.80	1.0	3	φ22	φ450	3320	3780	2590	3490	2615
14	UP1610	16	10	5.90	1.0	3	φ26	φ560	3900	4450	3010	4080	3060
15	UP2012	20	12	8.50	1.0	3	φ28	φ630	4300	4860	3240	4340	3250
16	UP2515	25	15	9.20	1.0	3	φ32	φ630	4520	5170	3530	4760	3570
17	UP3218	32	18	13.20	1.0	3	φ36	φ710	4890	5550	3770	5030	3770
18	UP4023	40	23	16.40	1.0	3	φ40	φ800	5350	6090	4050	5420	4060
19	UP5030	50	30	20.00	1.0	3	φ44	φ900	5860	6650	4400	5860	4390
20	UP6338	63	37.8	25.20	1.0	3	φ48	φ1000	6380	7250	4730	6340	4750
21	UP0525	5	2.5	2.10	1.25	4	φ16	φ315	2470	2850	2070	2615	1830
22	UP0841	8	4.1	3.10	1.25	4	φ20	φ400	3000	3470	2440	3095	2165
23	UP1052	10	5.2	3.70	1.25	4	φ22	φ450	3240	3770	2630	3330	2330
24	UP1683	16	8.3	5.80	1.25	4	φ26	φ560	3810	4430	3060	3895	2725
25	UP2095	20	9.5	8.20	1.25	4	φ28	φ630	4170	4820	3240	4070	2845
26	UP2512	25	12	9.30	1.25	4	φ32	φ630	4350	5090	3550	4420	3090
27	UP3215	32	15	13.10	1.25	4	φ36	φ710	4700	5500	3770	4730	3310
28	UP4019	40	19	16.20	1.25	4	φ40	φ800	5210	6070	4100	5150	3600
29	UP5024	50	24	20.00	1.25	4	φ44	φ900	5740	6630	4430	5630	3940
30	UP6331	63	31	24.90	1.25	4	φ48	φ1000	6200	7220	4800	6000	4195
31	UP0520	5	2	1.90	1.6	4	φ16	φ315	2360	2790	2030	2395	1675
32	UP0833	8	3.3	2.90	1.6	4	φ20	φ400	2880	3390	2380	2840	1985
33	UP1041	10	4.1	3.50	1.6	4	φ22	φ450	3085	3660	2570	3040	2125
34	UP1667	16	6.7	5.40	1.6	4	φ26	φ560	3650	4320	3020	3585	2510
35	UP2078	20	7.8	8.00	1.6	4	φ28	φ630	4010	4710	3200	3750	2625
36	UP2510	25	10	9.00	1.6	4	φ32	φ630	4180	4980	3470	4090	2860
37	UP3212	32	12	12.80	1.6	4	φ36	φ710	4550	5490	3700	4370	3060
38	UP4015	40	15	15.80	1.6	4	φ40	φ800	4970	5900	4000	4680	3275
39	UP5019	50	19	19.50	1.6	4	φ44	φ900	5480	6430	4310	5110	3570
40	UP6324	63	24.6	24.20	1.6	4	φ48	φ1000	5960	7050	4670	5520	3860
41	UP0516	5	1.6	2.20	2.0	4	φ16	φ315	2280	2690	1930	2220	1555
42	UP0826	8	2.6	3.20	2.0	4	φ20	φ400	2790	3260	2260	2660	1860
43	UP1033	10	3.3	3.80	2.0	4	φ22	φ450	3000	3540	2440	2870	2010
44	UP1655	16	5.5	5.60	2.0	4	φ26	φ560	3540	4200	2900	3360	2350
45	UP2065	20	6.5	7.50	2.0	4	φ28	φ630	3910	4600	3070	3560	2490
46	UP2583	25	8.3	9.00	2.0	4	φ32	φ630	4040	4830	3350	3830	2680
47	UP3210	32	10	12.80	2.0	4	φ36	φ710	4400	5200	3590	4070	2850
48	UP4012	40	12.6	15.50	2.0	4	φ40	φ800	4830	5720	3850	4400	3080
49	UP5016	50	16	19.00	2.0	4	φ44	φ900	5320	6260	4160	4800	3360
50	UP6320	63	20	23.00	2.0	4	φ48	φ1000	5780	6850	4520	5180	3620
51	UP0513	5	1.3	2.10	2.5	5	φ16	φ315	2210	2610	1870	2110	1370
52	UP0822	8	2.2	3.20	2.5	5	φ20	φ400	2710	3210	2230	2530	1645
53	UP1027	10	2.7	3.80	2.5	5	φ22	φ450	2920	3490	2400	2710	1760
54	UP1644	16	4.4	5.60	2.5	5	φ26	φ560	3440	4110	2840	3170	2060
55	UP2050	20	5	8.00	2.5	5	φ28	φ630	3790	4490	2970	3330	2160
56	UP2565	25	6.5	9.00	2.5	5	φ32	φ630	3950	4730	3250	3640	2365
57	UP3280	32	8	12.80	2.5	5	φ36	φ710	4270	5100	3490	3860	2510
58	UP4010	40	10.2	15.50	2.5	5	φ40	φ800	4730	5640	3770	4200	2730
59	UP5013	50	13	18.60	2.5	5	φ44	φ900	5200	6160	4110	4560	2960
60	UP6316	63	16.5	22.00	2.5	5	φ48	φ1000	5640	6730	4440	4890	3180
61	UP0510	5	1	2.20	3.2	6	φ16	φ315	2160	2590	1840	2000	1200
62	UP0816	8	1.6	3.30	3.2	6	φ20	φ400	2620	3120	2150	2325	1395
63	UP1020	10	2	3.80	3.2	6	φ22	φ450	2810	3370	2320	2500	1500
64	UP1633	16	3.3	5.60	3.2	6	φ26	φ560	3320	3980	2720	2920	1750
65	UP2040	20	4	7.60	3.2	6	φ28	φ630	3690	4410	2930	3130	1875
66	UP2550	25	5	8.60	3.2	6	φ32	φ630	3800	4600	3170	3360	2015
67	UP3263	32	6.3	12.20	3.2	6	φ36	φ710	4180	5020	3410	3640	2180
68	UP4080	40	8	15.00	3.2	6	φ40	φ800	4600	5510	3700	3940	2360
69	UP5010	50	10	18.80	3.2	6	φ44	φ900	5030	6000	3980	4240	2540
70	UP6312	63	12	22.00	3.2	6	φ48	φ1000	5470	6530	4300	4560	2735

Grab for Port Gantry Crane and Ship Unloader
