crane wheel block

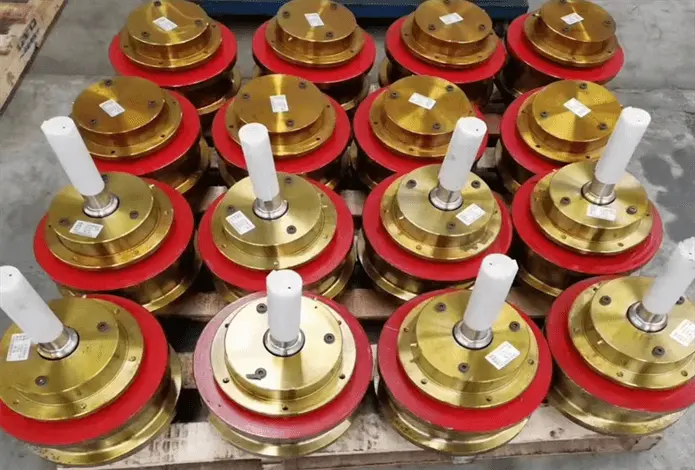

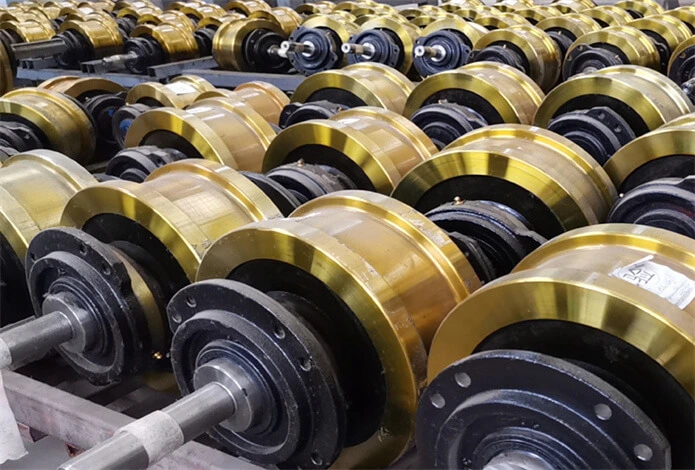

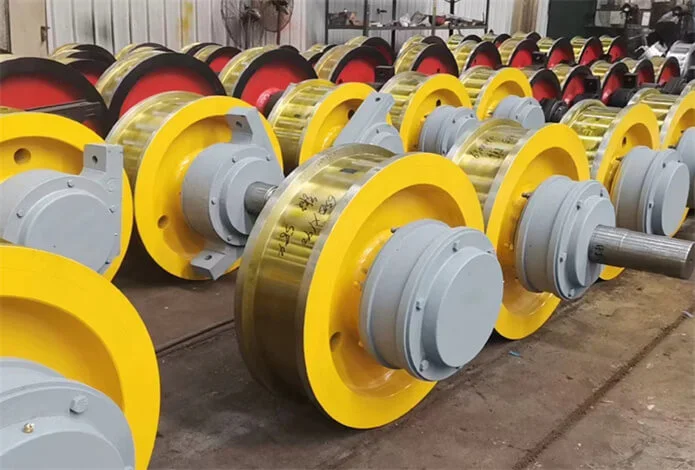

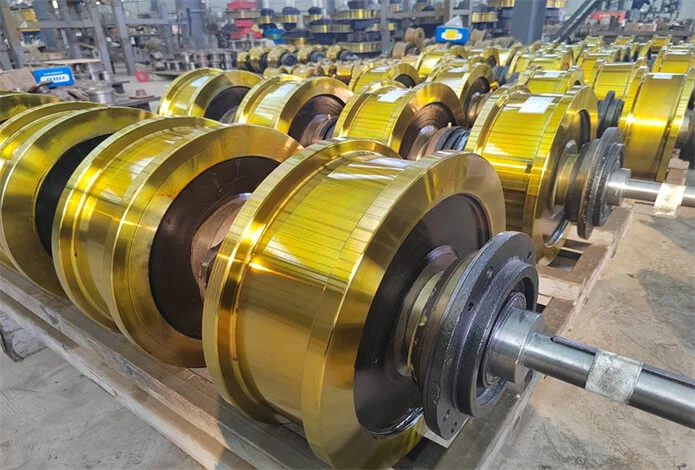

Product description

Wheel Block Usage: Crane or other engineering machine traveling mechanism

♦  Diameter range (mm): φ160-1000
♦  Diameter (mm):φ160,φ200,φ250,φ315,φ400,φ500,φ600,φ700, φ800,φ1000
♦  Wheel mode: Drive wheel; Idle wheel
♦  Wheel width (mm): 90, 150, 160, 190, 210
♦  Groove width (mm): 60, 100, 110, 130, 150
♦  Wheel material: 65Mn
♦  Reducer mode: FA37, FA37, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157
♦  Bearing brand: SKF, FAG, NSK or customer pointed brand
Processed by 42CrMo and 65Mn forged material, machined by robot production line CNC lathes. The surface is wear-resistant, with reserved encoder interface, which can effectively correct the deviation of the entire crane. The transmission efficiency is high, the bearing wheel pressure is large, and precise positioning can be installed.

TECHNICAL PARAMETERS

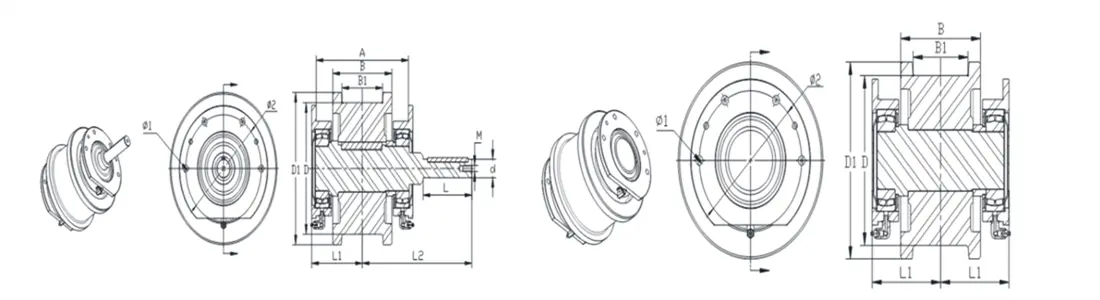

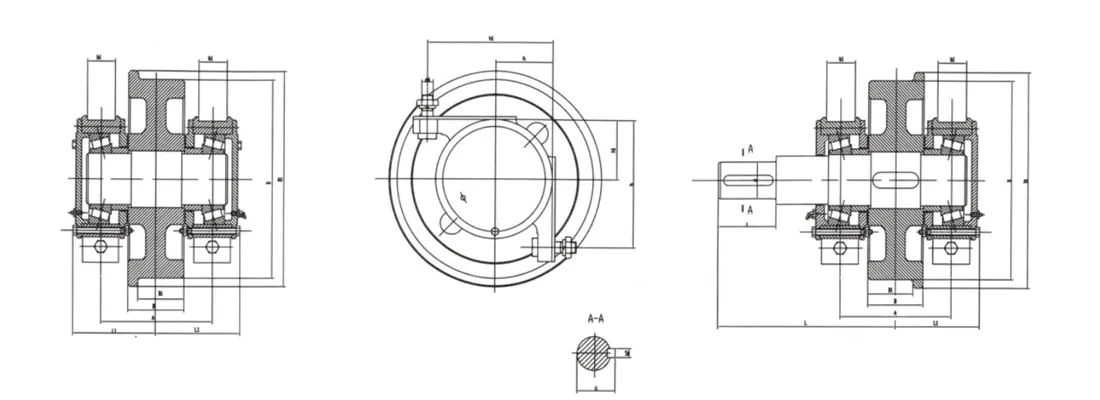

NO.	Item	Drg.NO.	Parameter															Weight(kg)
NO.	Item	Drg.NO.	D(h9)	D1	B	B1	A	h	h1(h11)	b1(H9)	d(s6)	I	d4	L	L1	G	b2	Weight(kg)
1	Drive wheelφ 250	L754	250	280	90	70	180	180	80	30	45	82	M20	237	130	485	14	45
2	Idle wheel φ 250	L755	250	280	90	70	180	180	80	30	-	-	M20	-	130	-	-	42
3	Drive wheelφ 350	L765	350	380	100	81	200	225	105	50	105	105	M20	320	150	69	18	112
4	Idle wheel φ 350	L757	350	380	100	81	200	225	105	50	-	-	M20	-	150	-	-	105
5	Drive wheelφ 400	L758	400	440	120	100	240	260	120	50	130	130	M20	365	170	85	22	155
6	Idle wheel φ 400	L759	400	440	120	100	240	260	120	50	-	-	M20	-	170	-	-	148
7	Drive wheelφ 500	L762	500	540	130	110	270	300	140	50	130	130	M20	365	195	85	22	250
8	Idle wheel φ 500	L763	500	540	130	110	270	300	140	50	-	-	M20	-	195	-	-	245
9	Drive wheelφ 315	L774	315	345	100	81	200	225	105	50	105	105	M20	320	150	69	18	112
10	Idle wheel φ 315	L775	315	345	100	81	200	225	105	50	-	-	M20	-	150	-	-	105

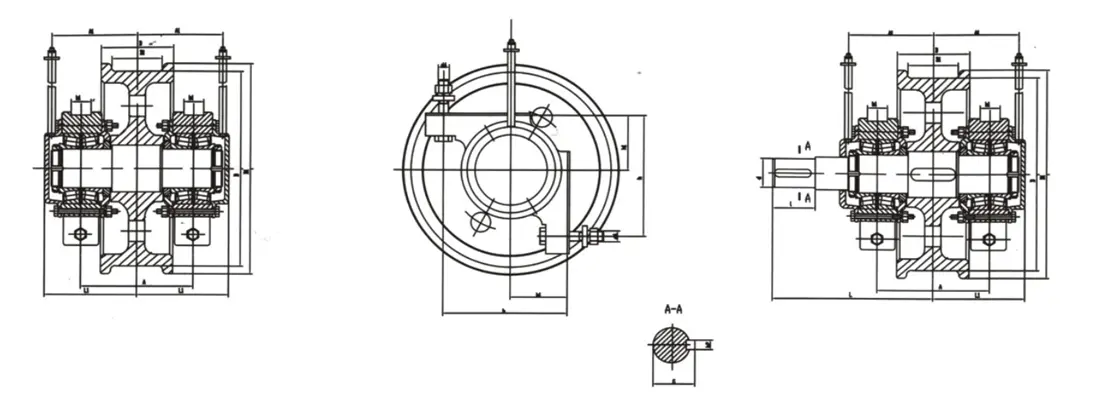

NO.	Item	Drg.NO.	Parameter															Weight(kg)
NO.	Item	Drg.NO.	D(h9)	D1	A	A1	h	h1	b	b1	d(s6)	I	d4	L	L1	G	b2	Weight(kg)
1	Drive wheelφ 500	L764	500	540	280	213.5	310	140	230	50	75	105	M24	400	230	79.5	20	284
2	Idle wheel φ 500	L765	500	540	280	213.5	310	140	230	50	-	-		-	230	-	-	277
3	Drive wheelφ 600	L766	600	640	280	213	310	140	230	50	85	130		415	230	90	22	332
4	Idle wheel φ 600	L767	600	640	280	213	310	140	230	50	-	-		415	230	-	-	322
5	Drive wheelφ 700	L768	700	750	315	240	240	350	235	80	90	130	M30	455	260	95	25	508
6	Idle wheel φ 700	L769	700	750	315	240	240	350	235	80	-	-		-	260	-	-	495
7	Drive wheelφ 800	L770	800	850	365	280	280	410	275	90	95	130		500	300	100	25	756
8	Idle wheel φ 800	L771	800	850	365	280	280	410	275	90	-	-		-	300	-	-	743
