Product description

Double girder overhead crane is organized by box-weld main girder, grab trolley, cab, long travel mechanism and control system. The load handling device is grab/bucket which is able to pick up, transport and deposit bulk materials. The grab has switching mechanism and lifting mechanism, grab is hung on those two mechanisms by four steel wire rope. The switching mechanism drives the grab to close to grab material. When the grab is closed, lifting mechanism immediately start to hoist the grab, four loaded steel wire rope bears even stress. Garbage grab crane is key device that used in the waste feeding system of waste-energy power plant.it is located at the top refuse storing pit, and used for feeding, conveying, mixing, fetching and weighting of garbage. The crane can implement lifting-conveying work, strictly ensure normal garbage-cremation power plant's running. this crane can be controlled by hand, semi-automation and automation.

Double girder overhead grab crane mainly services for waste to energy power plant, refuse incineration power plant and cogeneration power plant.

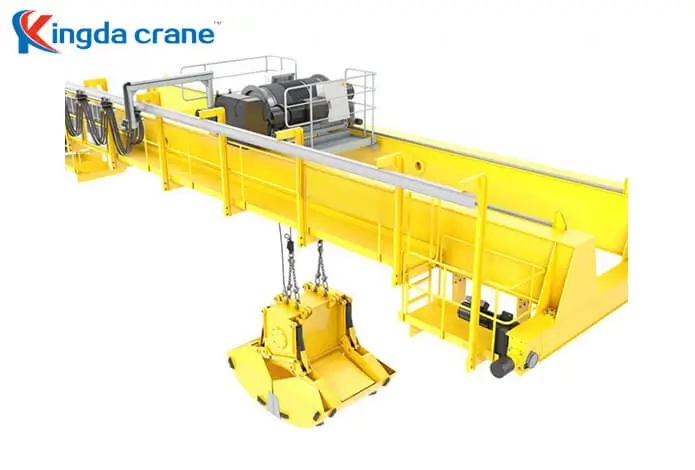

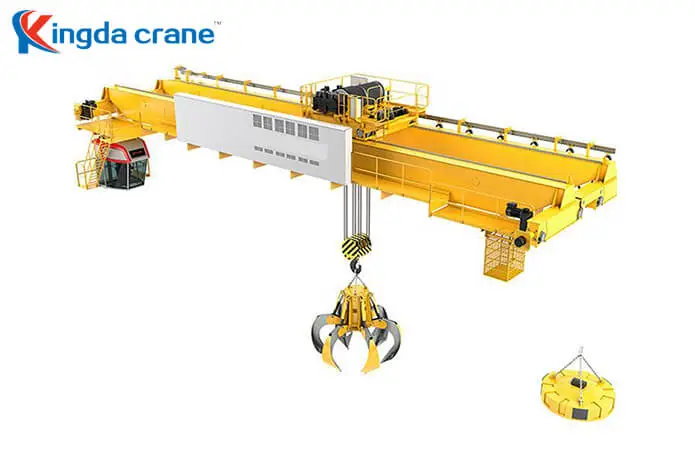

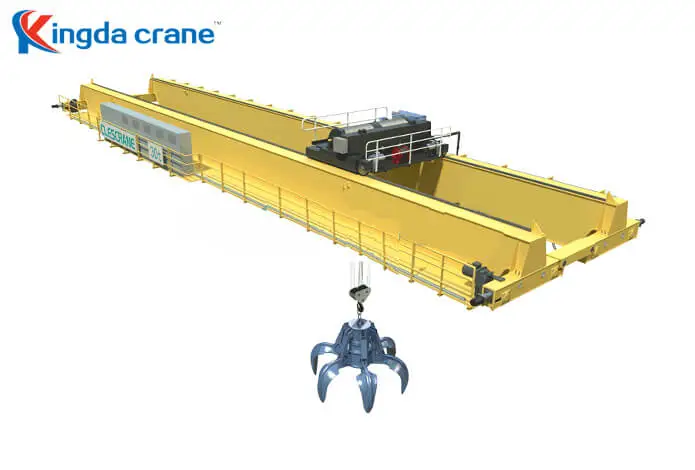

On the grab trolley, motor-hydraulic multi-jaws grab can be hung, and clam-shell mechanical grab also can be used on double girder grab crane.

Lifting capacity: 5-20T

Lifting mechanism: Grab trolley mechanism

Working class: A8

Working environment: Waste incineration plant/biomass fuel plant/garbage-cremation power plant/Iron and steel plant

Working temperature: -10°C~40°C

Control mode: Wireless remote/cabin/pendant

Grab mode: motor-hydraulic /electric motor

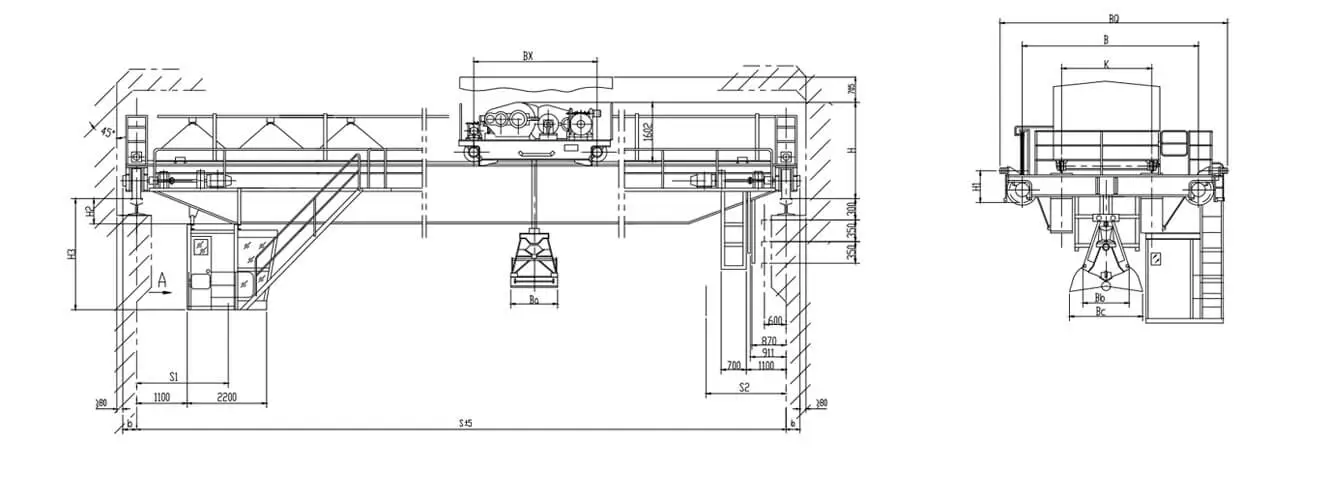

TECHNICAL PARAMETERS

Lifting capacity				t	5	10	16	20
Span				m	31.5	31.5	31.5	31.5
Working class				A6
Lifting height				m	20	18	22	26
Speed	lifting			m/min	40.1	40.7	41.8	48.6
	Cross travel				44.6	45.6	43.2	43.2
	long travel				86.4	89	87.3	87.3
Weight	trolley			Kg	5200	8200	14800	19300
	total weight		indoor		41300	50400	67900	75600
	total weight		out door		42100	51200	69000	76800
Max wheel pressure			indoor	kn	144	196	263	312
Max wheel pressure			out door	kn	148	201	268	316
Grab	Model	113	110	106	102	130	148	144
	Type	light	medium	heavy	super heavy	super heavy	heavy	super heavy
	Volume(M3)	2.5	1.5	1	0.75	2.5	4	3
	Density t/m3	1-1.7		1.7-2.5	2.5-3.3	2.5-3.3
	Dead weight(kg)	2632	2615	2568	2546	8305	10123	9927
Recommended rail					43kg/m		QU70
Power source					380-600V 50HZ 3 Phase
